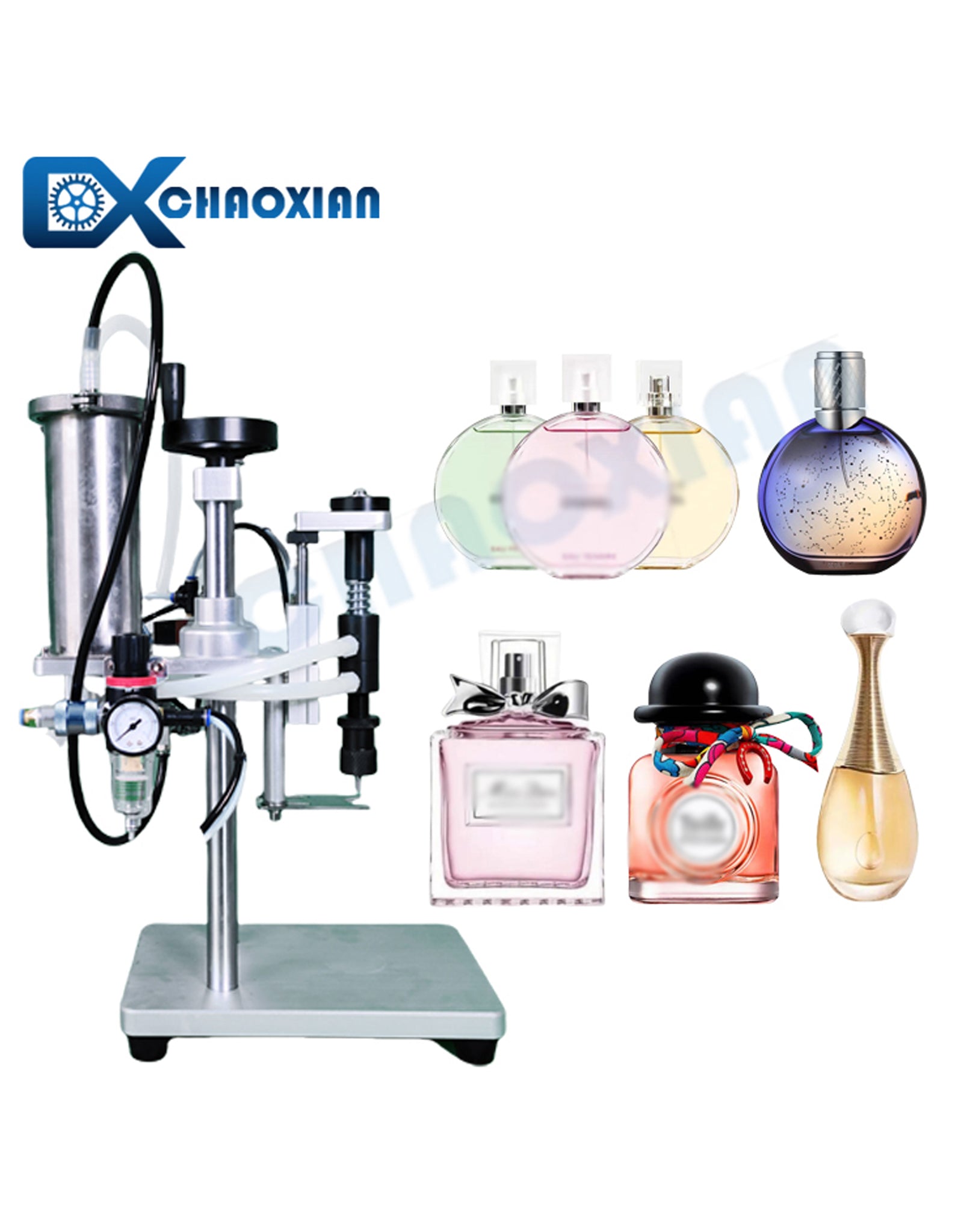

CX Semi-automatic Glass Bottle Wine Perfume Filling Machine
Description:
This FM-05O Semi-automatic Glass Bottle Wine Perfume Filling Machine is simpler and more convenient in terms of operation, accuracy error, filling adjustment, equipment cleaning, maintenance, etc.
The fully pneumatic filling machine designed on this basis uses pneumatic components to replace the electrical control circuit, so it is particularly suitable for use in environments with explosion-proof requirements.
FM-05O Semi-automatic Glass Bottle Wine Perfume Filling Machine adopts full pneumatic control, which is particularly suitable for filling high-foam and irregular products submitted by bottles.
FM-05O Semi-automatic Glass Bottle Wine Perfume Filling Machine principle: through the filling head to apply pressure, the vacuum generator realizes a local sealed environment in the return bottle and the bottle to be filled, and produces a local vacuum environment. Filling is achieved by vacuum suction,
-- Fixed liquid level filling
-- Equipped with a return barrel automatic liquid products recovery system
-- No strict requirements on bottle shape and consistency
-- Simple structure, easy to operate and maintain.
Application:
FM-05O Semi-automatic Glass Bottle Wine Perfume Filling Machine is suitable for: perfume, skin care water, toner, gel water, fruit juice drinks, alcoholic beverages, mineral water, purified water, hair care products, skin care products, cosmetics, cleaning, washing products, oral liquid, potion.
Specification
|
Machine Model
|
FM-05O
|
|||
|
Machine Name
|
CX Semi-automatic Glass Bottle Wine
Perfume Filling Machine
|
|||
|
Filling Speed
|
About 300-900 bottles per hour
(depending on proficiency and bottle size) |
|||
|
Filling Range
|
about 20-1000ml(can be customized)
|
|||
|
Filling measuring method
|
Liquid level of the bottles
|
|||
|
Filling nozzle quantity
|
1
|
|||
|
Filling system
|
Vacuum negative pressure filling system
|
|||
|
Bottle height
|
≤ 260mm (can be customized)
|
|||
|
Bottle mouth
|
≤ 23mm outer diameter of the bottle mouth
(can be customized)
|
|||
|
Bottle type
|
Glass bottles/ Hard enough plastic bottles
|
|||
|
Driving mode
|
Fully pneumatic drives Filling Machine
(offered is not included air comporessor)
|
|||
|
Working air pressure
|
≥0.06Mpa
|
|||
|
Machine Material
|
Stainless Steel 304 + Anodized aluminum
|
|||
|
Machine Size
|
About 210*370*550mm(L*W*H)
|
|||
|
Package Size
|
About 260*420*650mm(L*W*H)
|
|||
|
Gross Weight
|
About 20kg
|
|||
Design Drawing of Our FM-05O Semi-automatic Glass Bottle Wine Perfume Filling Machine

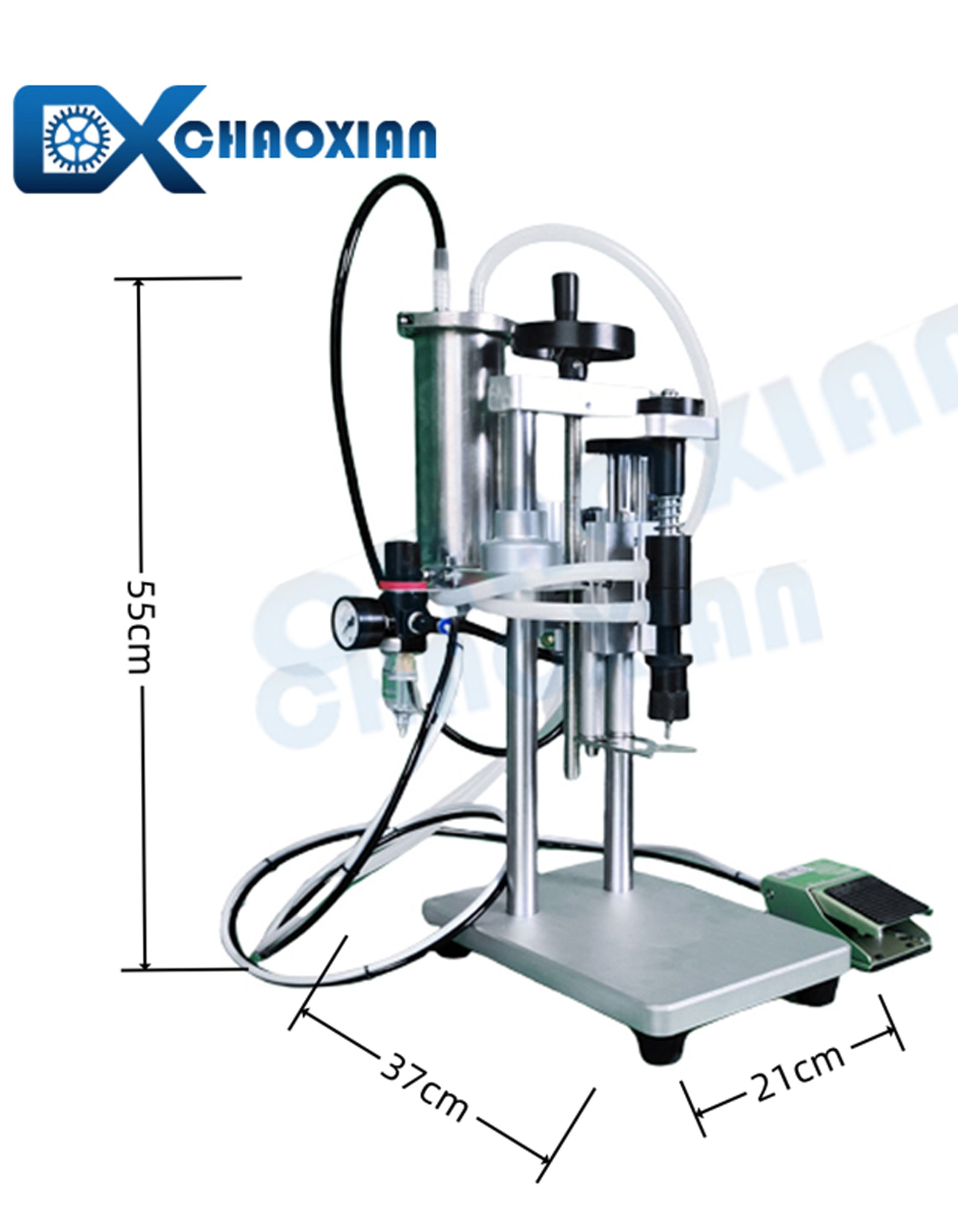

Size of Our FM-05O Semi-automatic Glass Bottle Wine Perfume Filling Machine

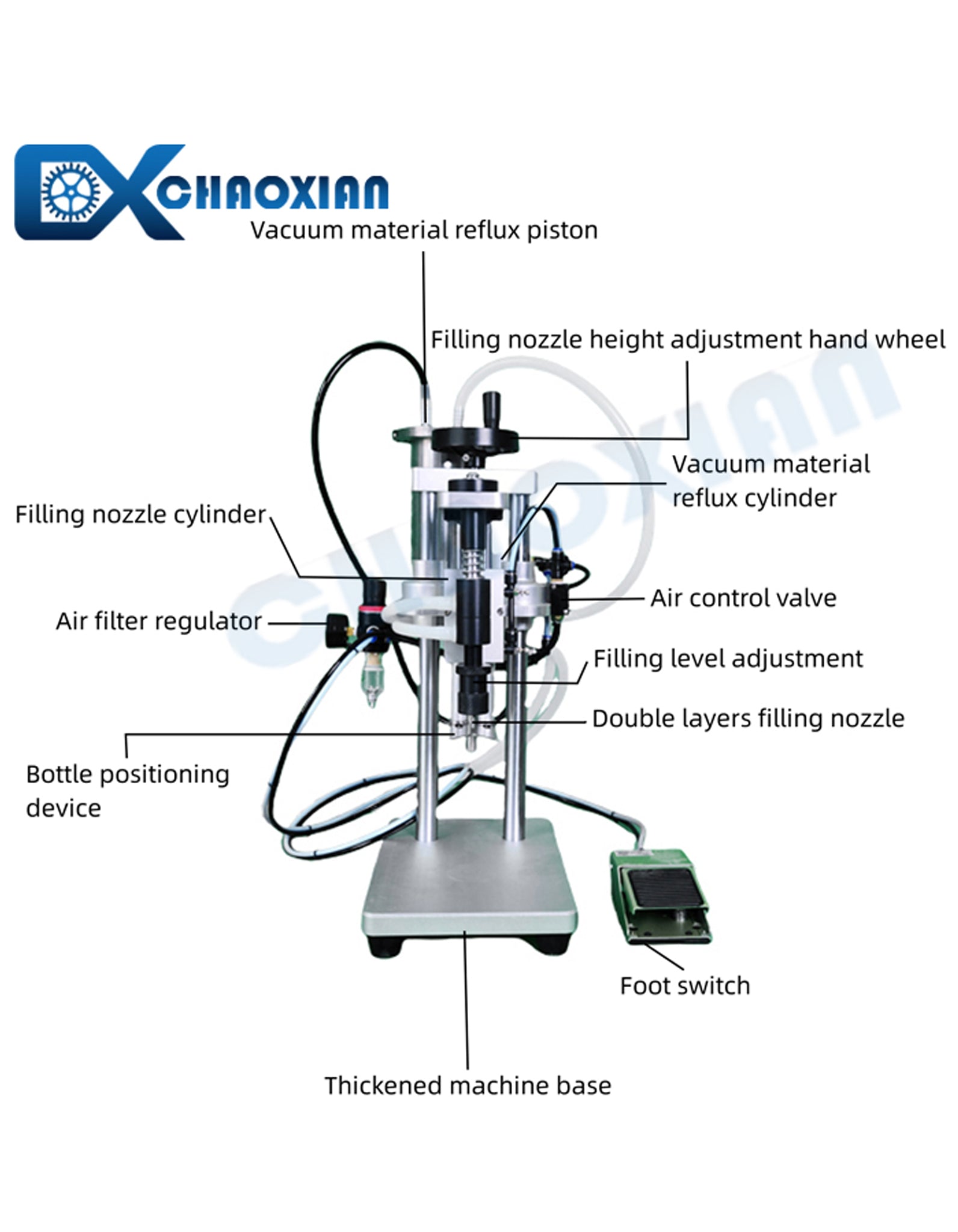

Details Show of Our FM-05O Semi-automatic Glass Bottle Wine Perfume Filling Machine

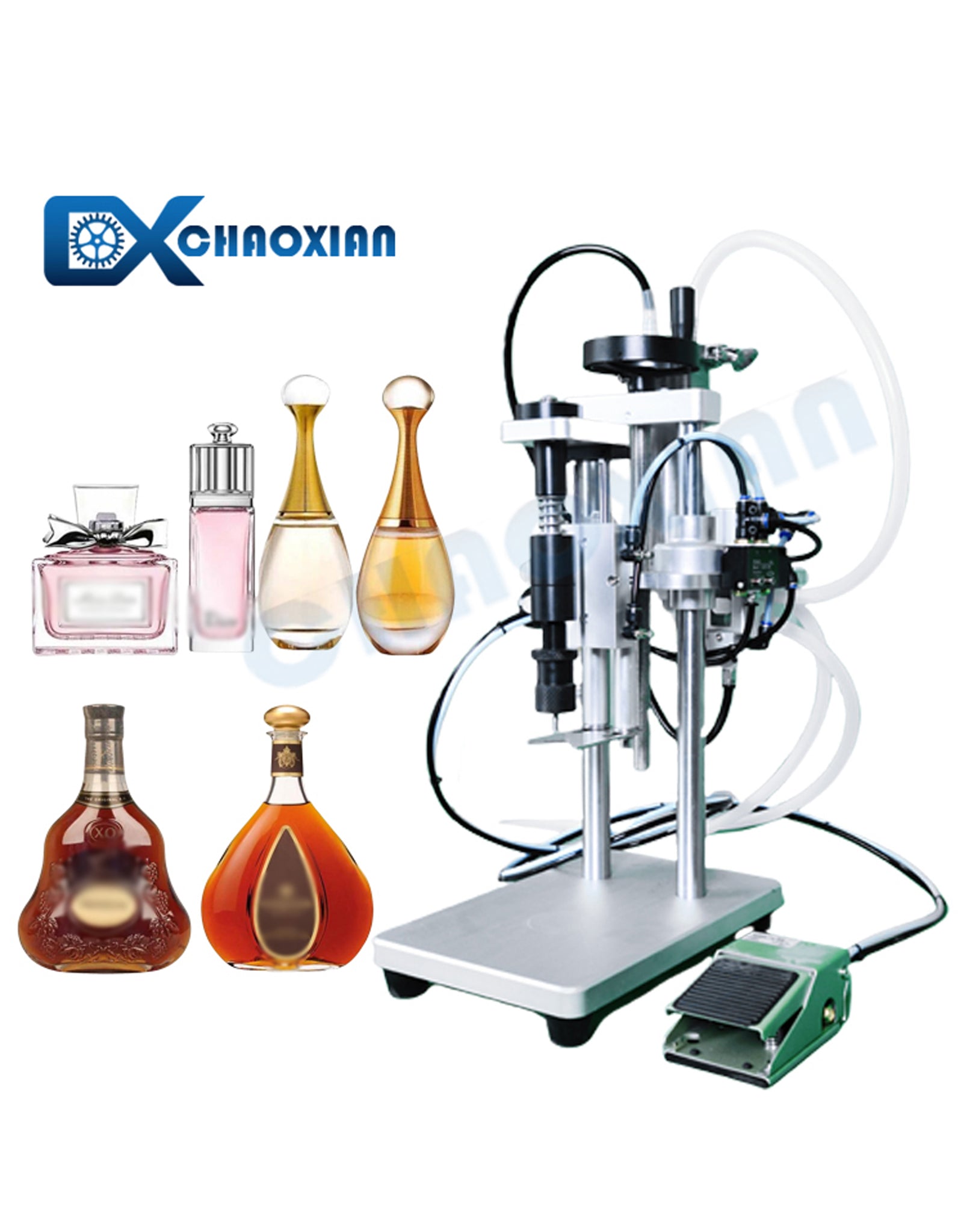

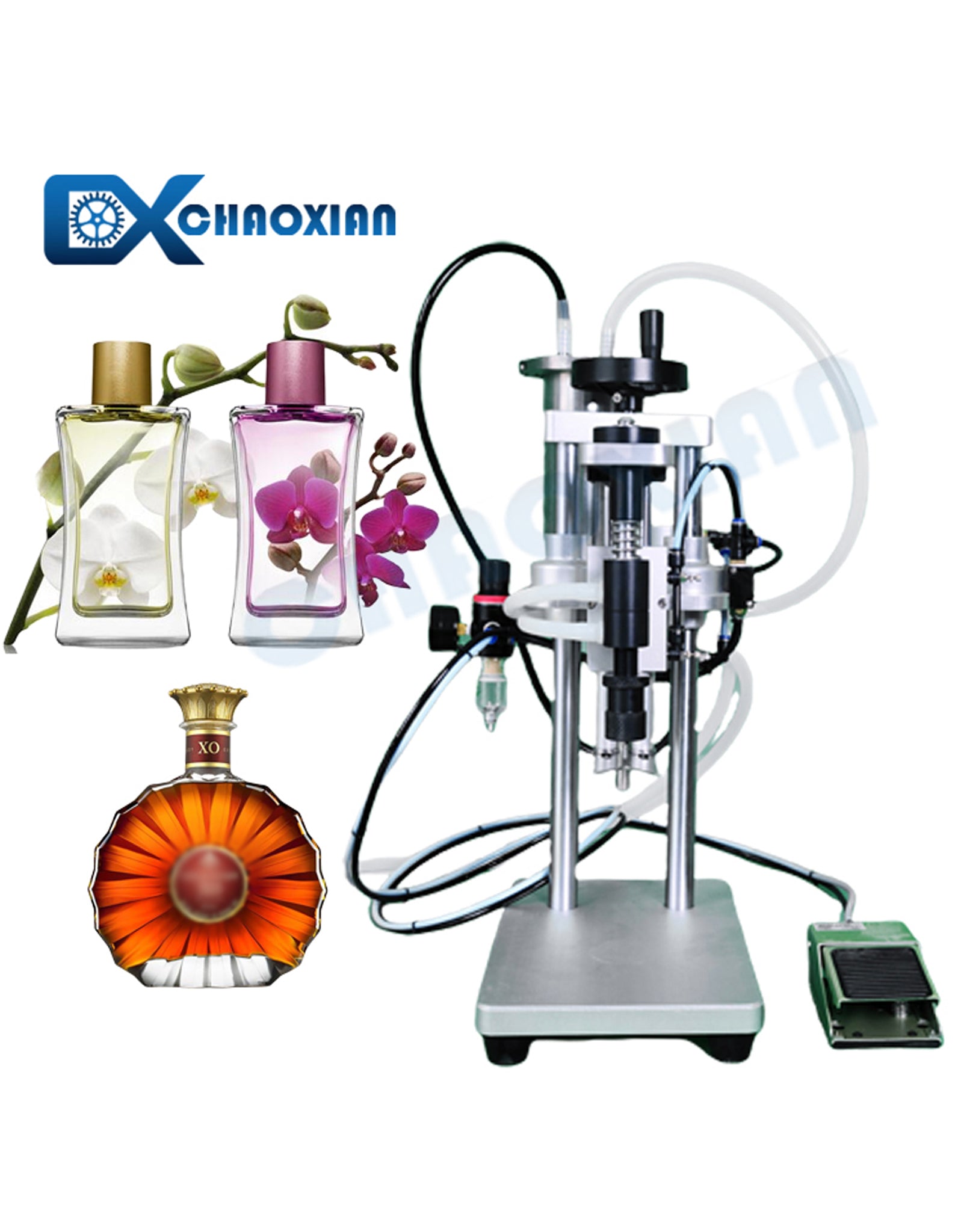

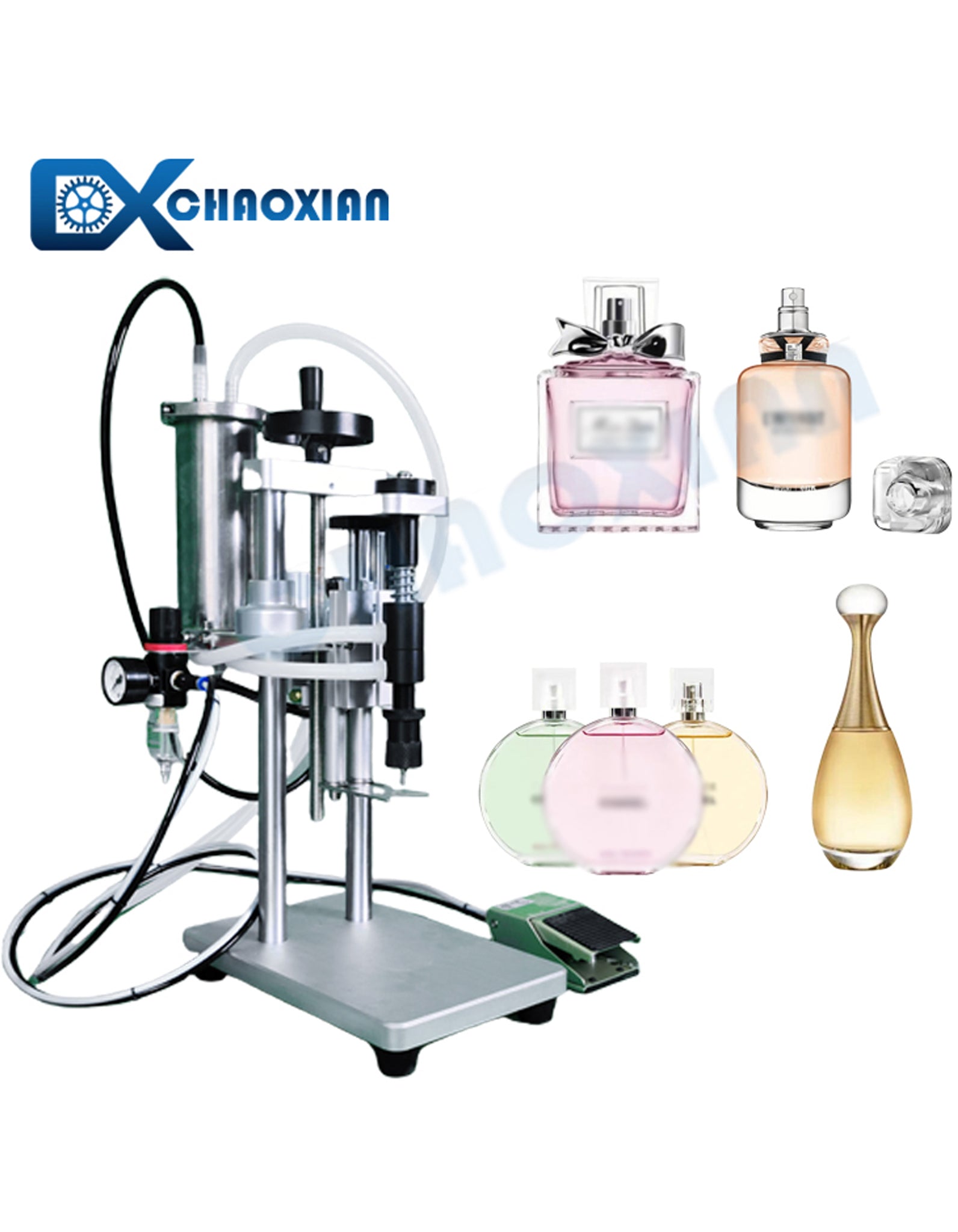

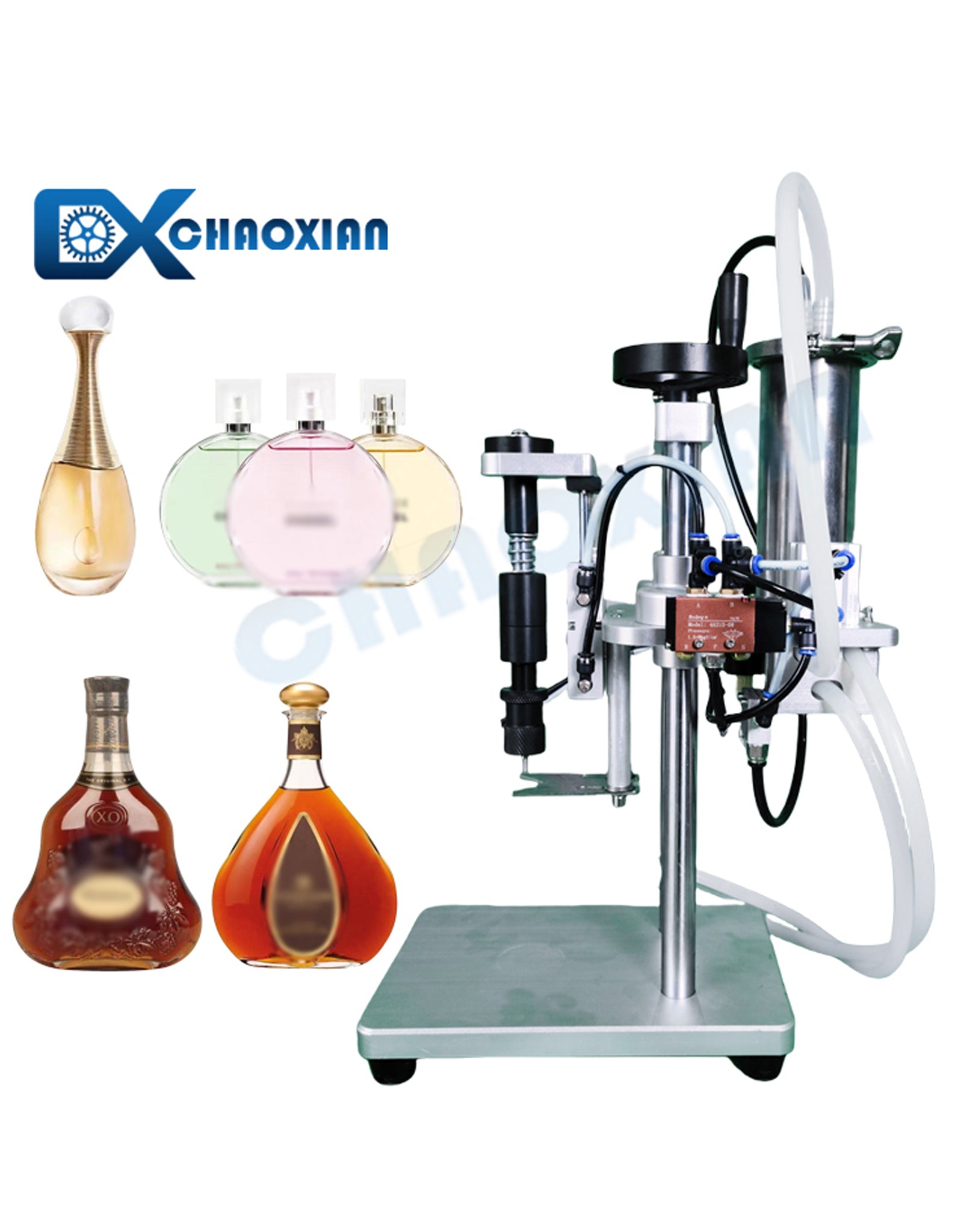

Real Shot of Our FM-05O Semi-automatic Glass Bottle Wine Perfume Filling Machine
