CX Semi-Automatic Spray Bottle Capping Machine
Description of Our CX Semi-Automatic Spray Bottle Capping Machine
This Semi-Automatic Spray Bottle Capping Machine is suitable for the capping of nozzles, pump heads, aluminum caps, plastic caps, round bottle caps, duckbill caps in various daily necessities, medicine, chemical industry, food and other industries. It adopts electric and pneumatic control operation. It has high stability and wide application range.
Semi-Automatic Spray Bottle Capping Machine can lock bottle caps of different shapes and specifications. The capping force can be adjusted. The tightness can be adjusted according to different bottle caps. Semi-Automatic Spray Bottle Capping Machine is simple to operate and easy to use.
Advantages of Our CX Semi-Automatic Spray Bottle Capping Machine
1 Compact and reasonable structure, strong versatility, large capping range, and wide range of use.
2 Smooth operation, low noise, low energy consumption, and high work efficiency
3 High head pressure, no water leakage at the seal

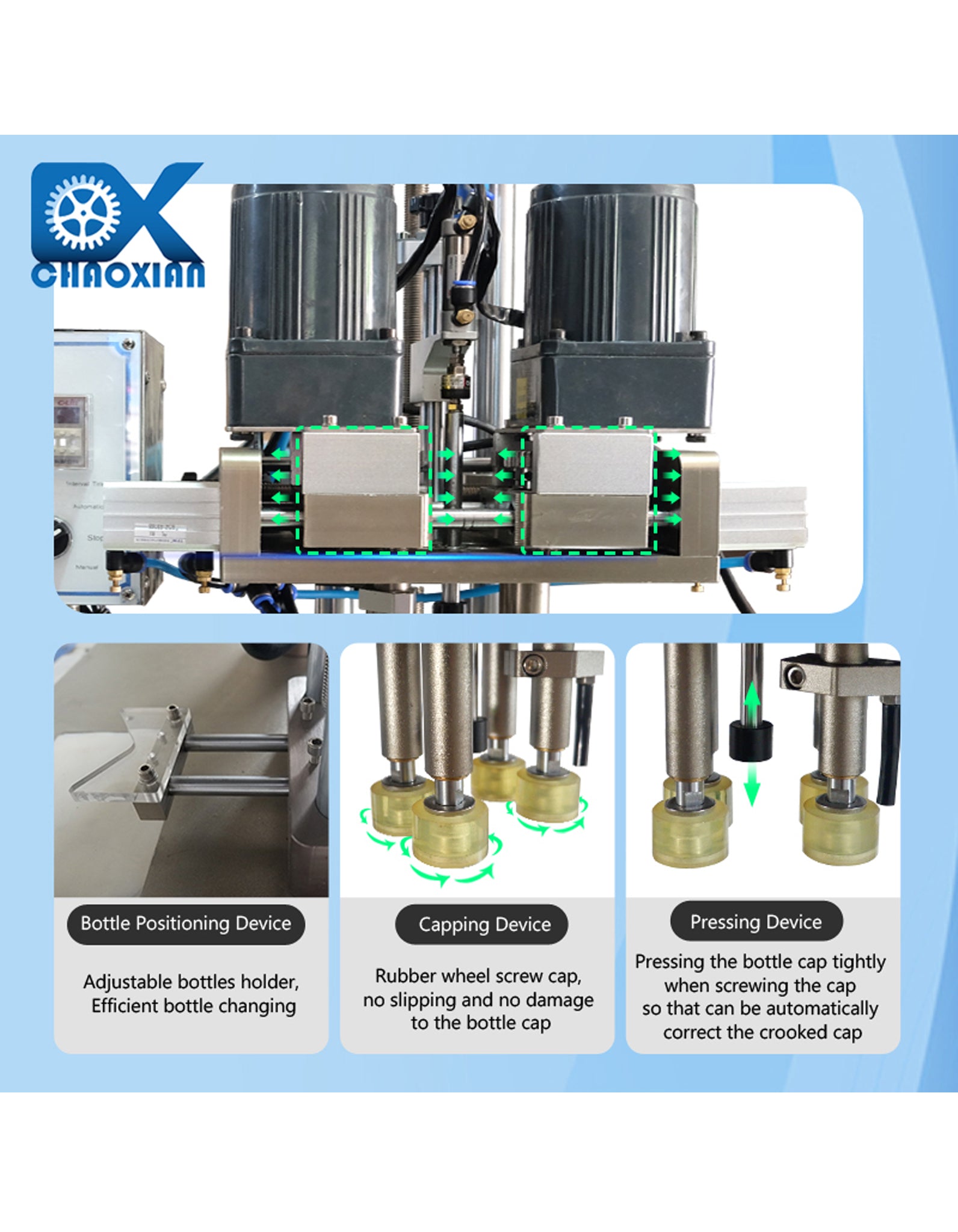

4 Tighten the cap, with capping device, silicone wheel, no damage to the cap.
5 Safe positioning device, efficient operation
6 Simple control panel, the locking time, number of times and interval time can be adjusted.
7 Equipped with a foot switch, which can be operated automatically or manually.
8 Caps of various shapes and specifications can be screwed.
Specification of Our CX Semi-Automatic Spray Bottle Capping Machine
|
Machine voltage
|
Single phase 220V/110V, 50/60HZ, 150W
|
|
Production capacity
|
600-1200bph
|
|
Gas source
|
0.6-0.8MPa
|
|
Capping Torque
|
4-8kgf/cm
|
|
Suitable caps diameter
|
20-50mm (customized)
|
|
Suitable bottle height
|
50-300mm (customized)
|
|
Weight
|
About 42kg
|
|
Machine dimension
|
about 480*420*650mm
|
|
Package dimension
|
about 500*440*680mm
|
Parameter of Our CX Semi-Automatic Spray Bottle Capping Machine
Applicable bottle height 300mm (customizable)
Applicable bottle mouth diameter 12-60mm (customizable)
Production efficiency: 30-50 bottles/min
Working air pressure: 0.4-0.6mpa
Dimensions: 50*35*60cm
Weight: 31kg
Working mode: automatic/manual (pedal is manual mode, automatic switch is turned on to automatic mode)
Motor power: 60w
Voltage Single phase 220v (customizable)
Packing range: various shapes and specifications of bottle caps

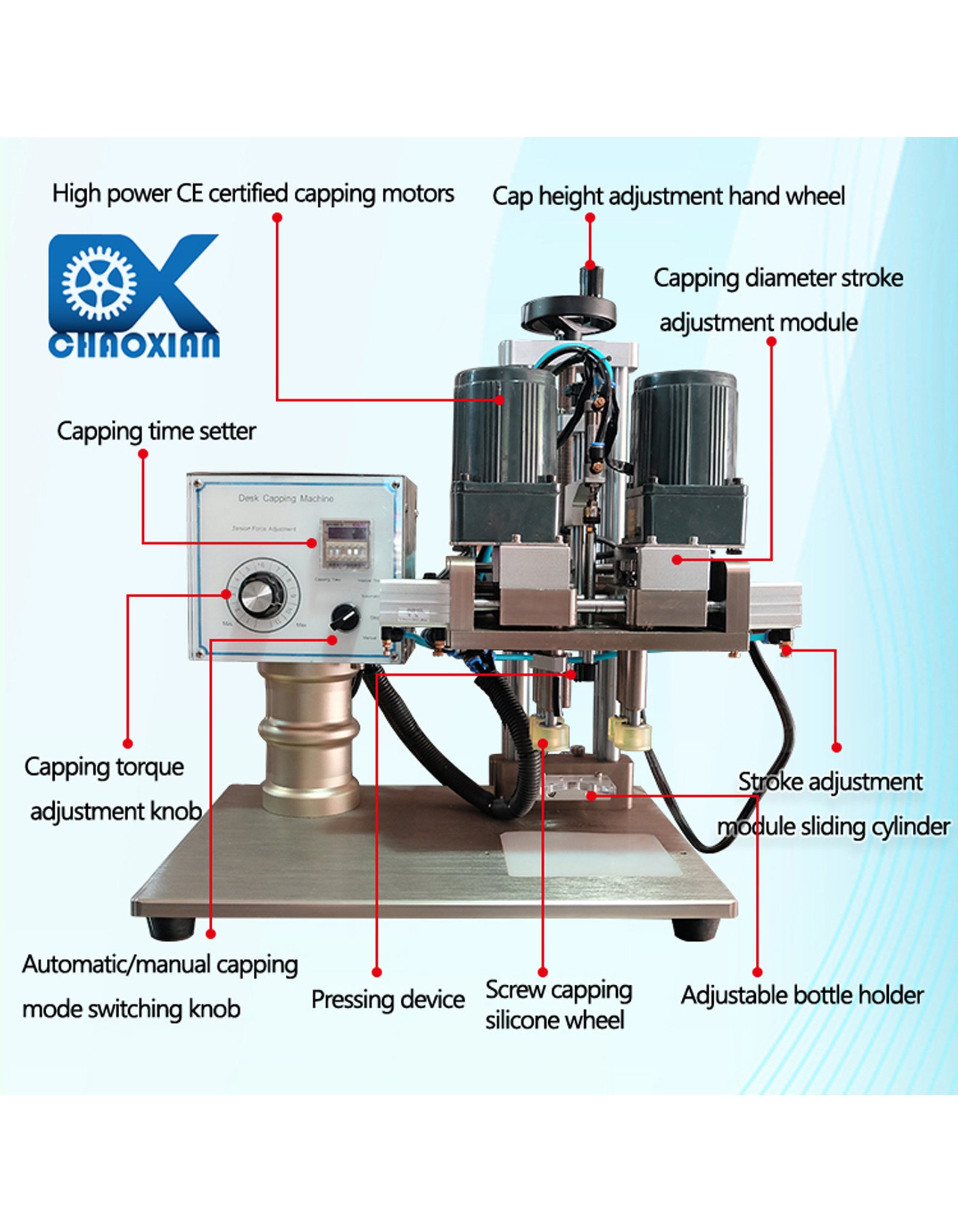

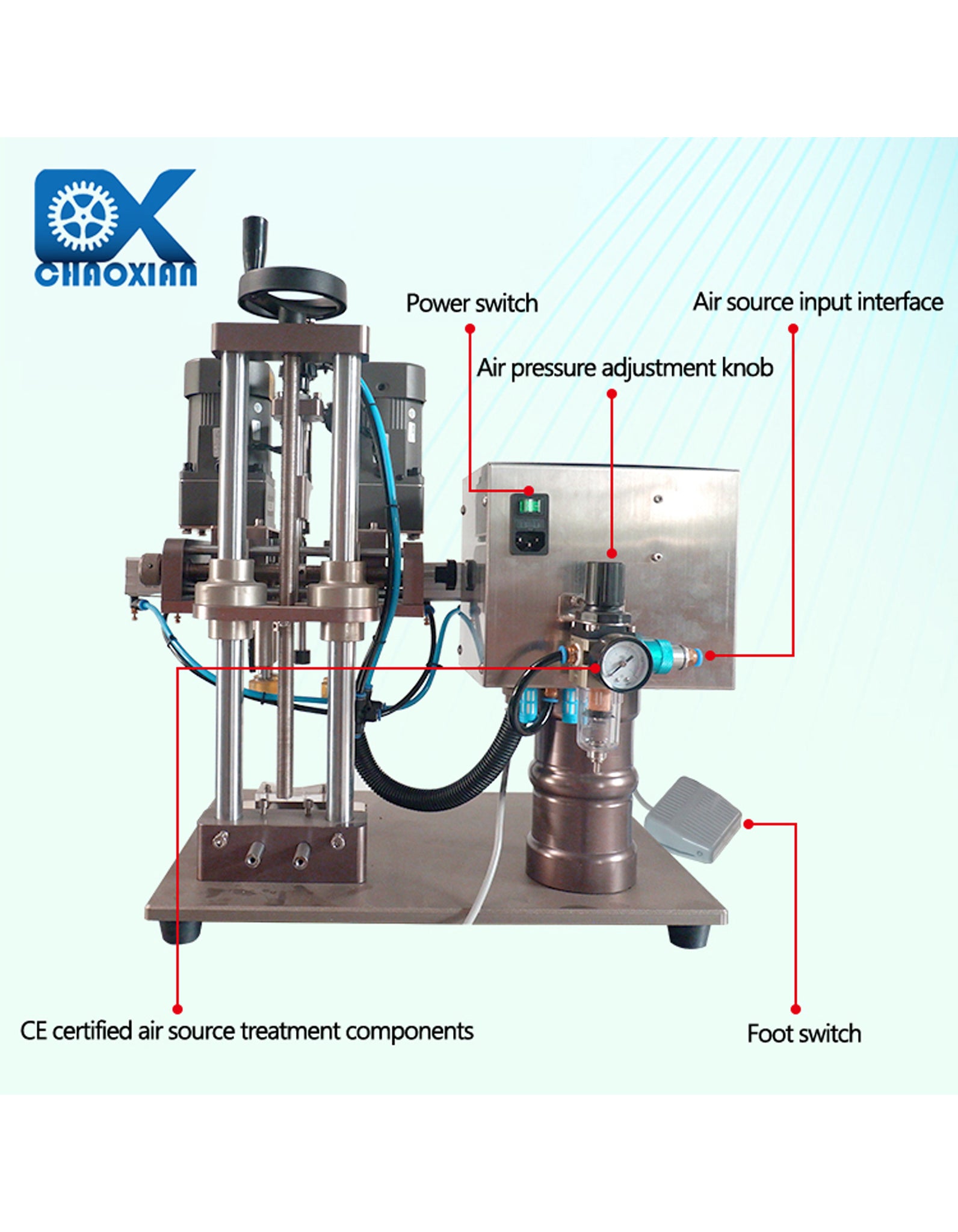

Details of Our CX Semi-Automatic Spray Bottle Capping Machine

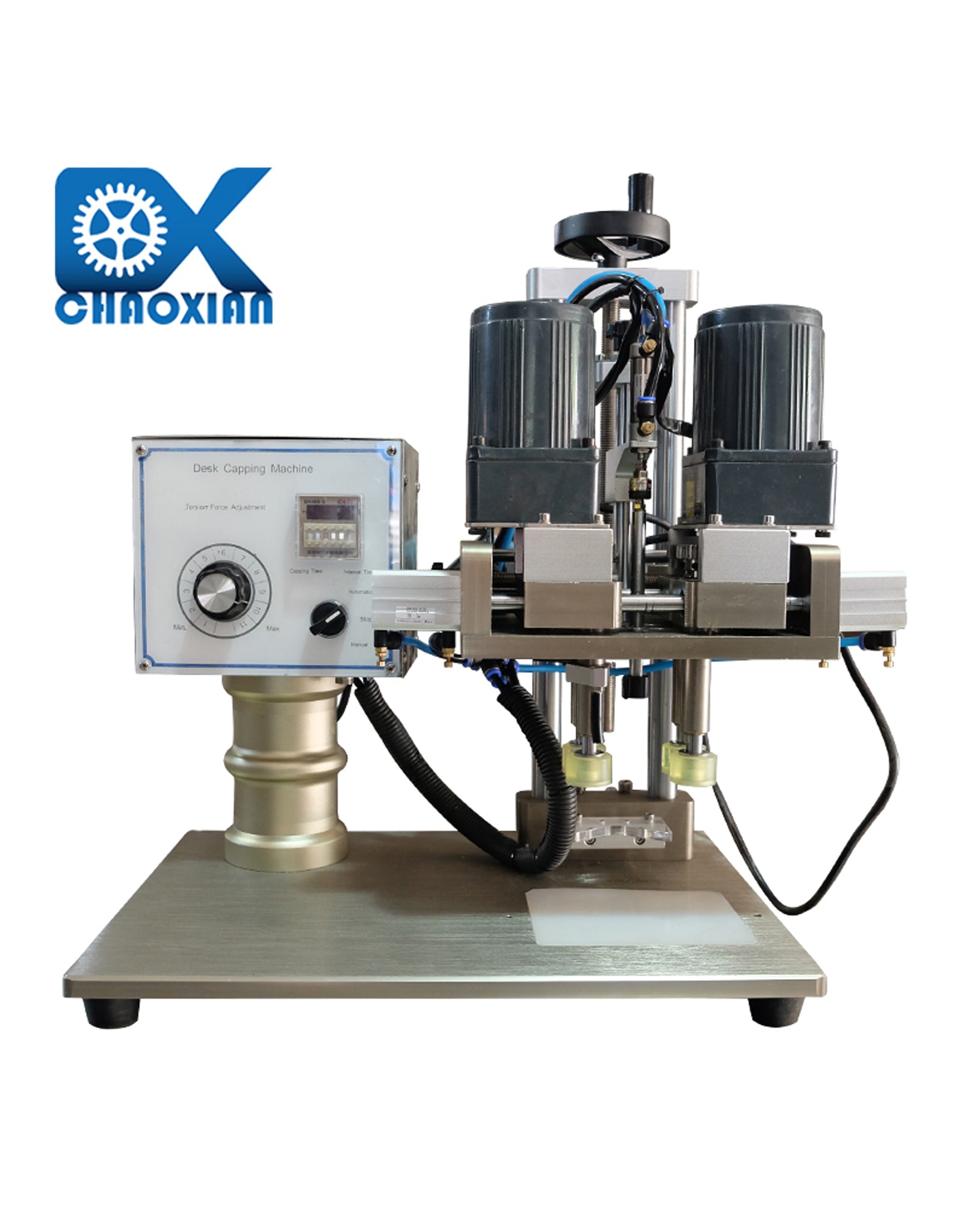

Real Shot of Our CX Semi-Automatic Spray Bottle Capping Machine
