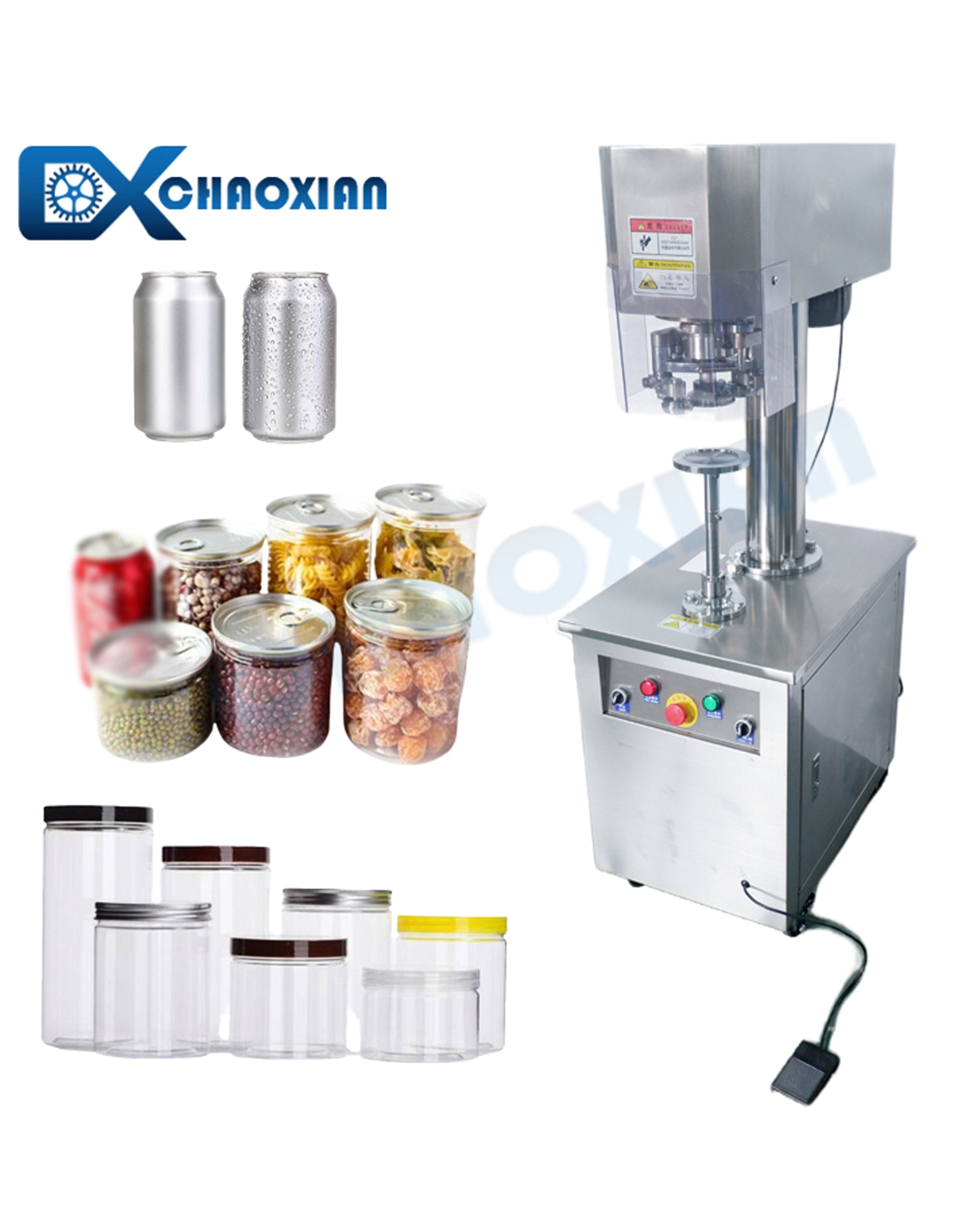

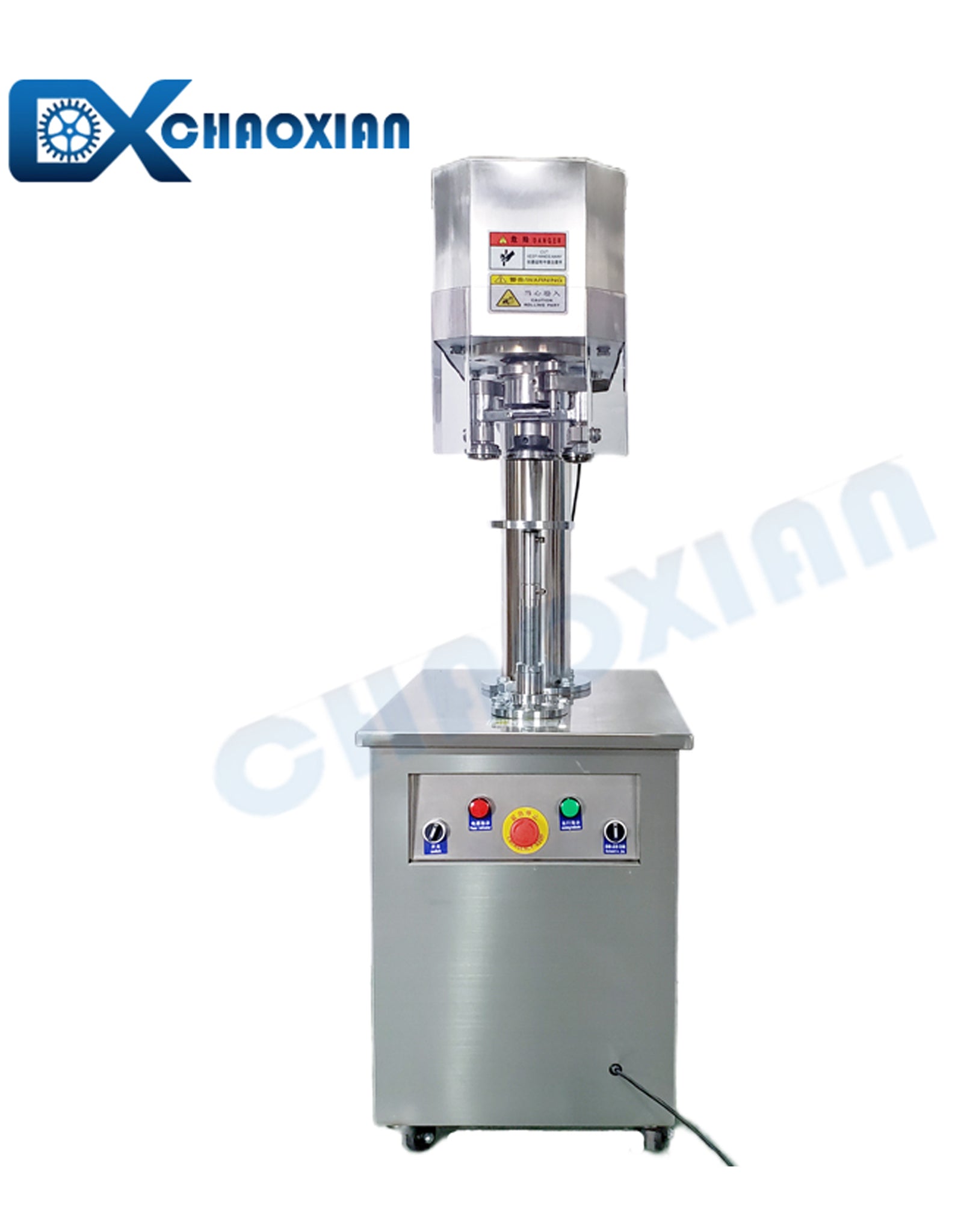

Semi Automatic Can Sealing Machine for Metal, Plastic & Paper Cans
Description:
This semi-automatic can sealing machine is designed for sealing various round cans with metal lids. It is widely used for sealing tin cans, plastic jars, paper tea cans, and aluminum bowls. The machine is compact in size, easy to operate, and supports both semi-automatic and time-based automatic modes.
The operator places the can on the lifting tray. When the machine is activated:
1. The tray rises to push the can against the sealing head.
2. Two or four sealing rollers rotate to crimp and roll the lid onto the can.
3. The tray automatically lowers after sealing is complete.
4. In automatic mode, the lifting tray moves up and down at preset intervals, allowing continuous sealing.
The sealing is achieved by mechanical pressure and rotation, ensuring a firm, smooth, and leak-proof seal.
Working process & Principle
The operator places the can on the lifting tray. When the machine is activated:1. The tray rises to push the can against the sealing head.
2. Two or four sealing rollers rotate to crimp and roll the lid onto the can.
3. The tray automatically lowers after sealing is complete.
4. In automatic mode, the lifting tray moves up and down at preset intervals, allowing continuous sealing.
The sealing is achieved by mechanical pressure and rotation, ensuring a firm, smooth, and leak-proof seal.
Main features:
-- Available with 2 or 4 sealing rollers for different sealing strength and can sizes
-- Supports semi-automatic and auto-timer modes
-- Adjustable tray height to accommodate various can heights
-- Compact, stainless steel structure, durable and space-saving
-- Easy to operate with minimal training required
Application:
-- Supports semi-automatic and auto-timer modes
-- Adjustable tray height to accommodate various can heights
-- Compact, stainless steel structure, durable and space-saving
-- Easy to operate with minimal training required
Application:

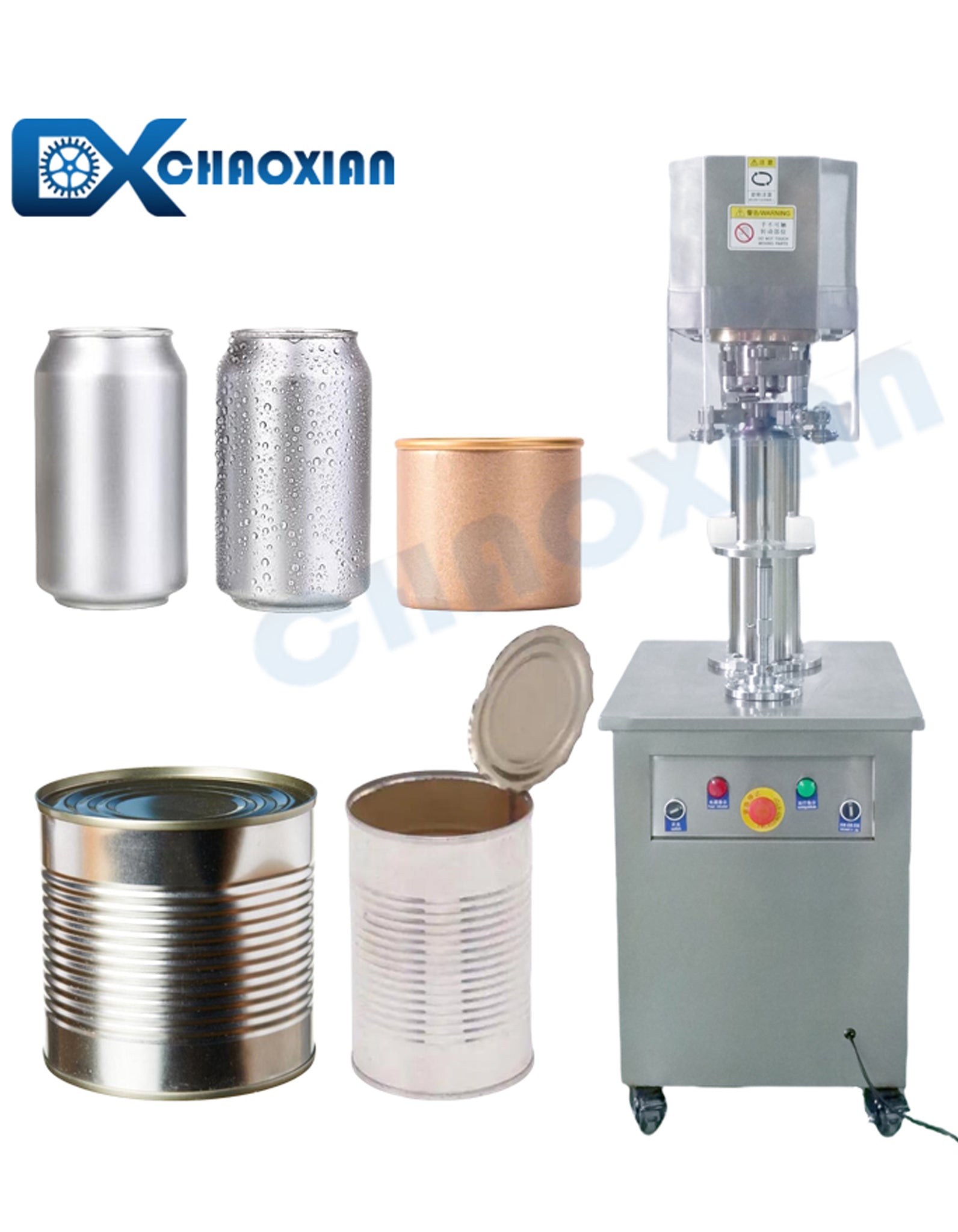

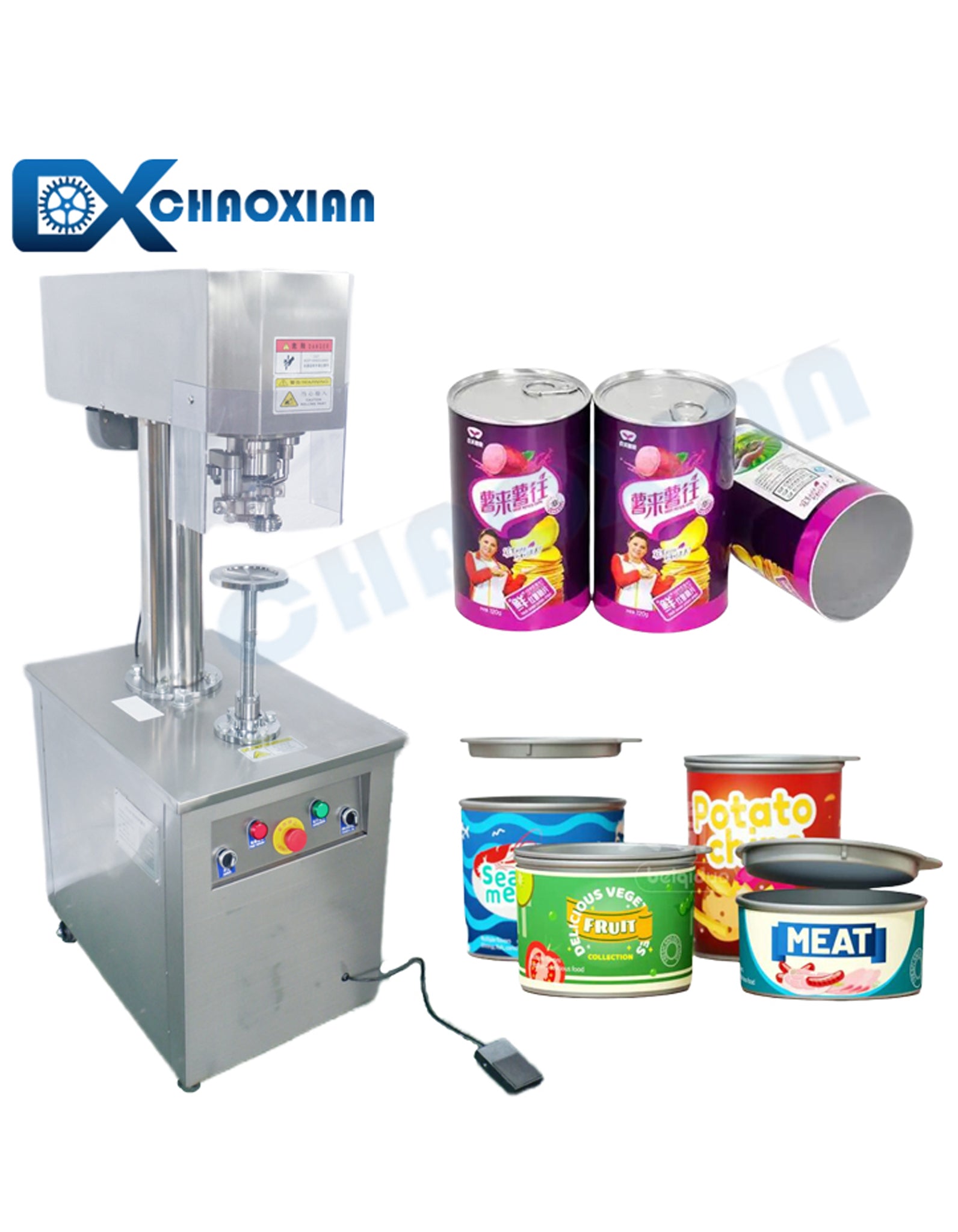

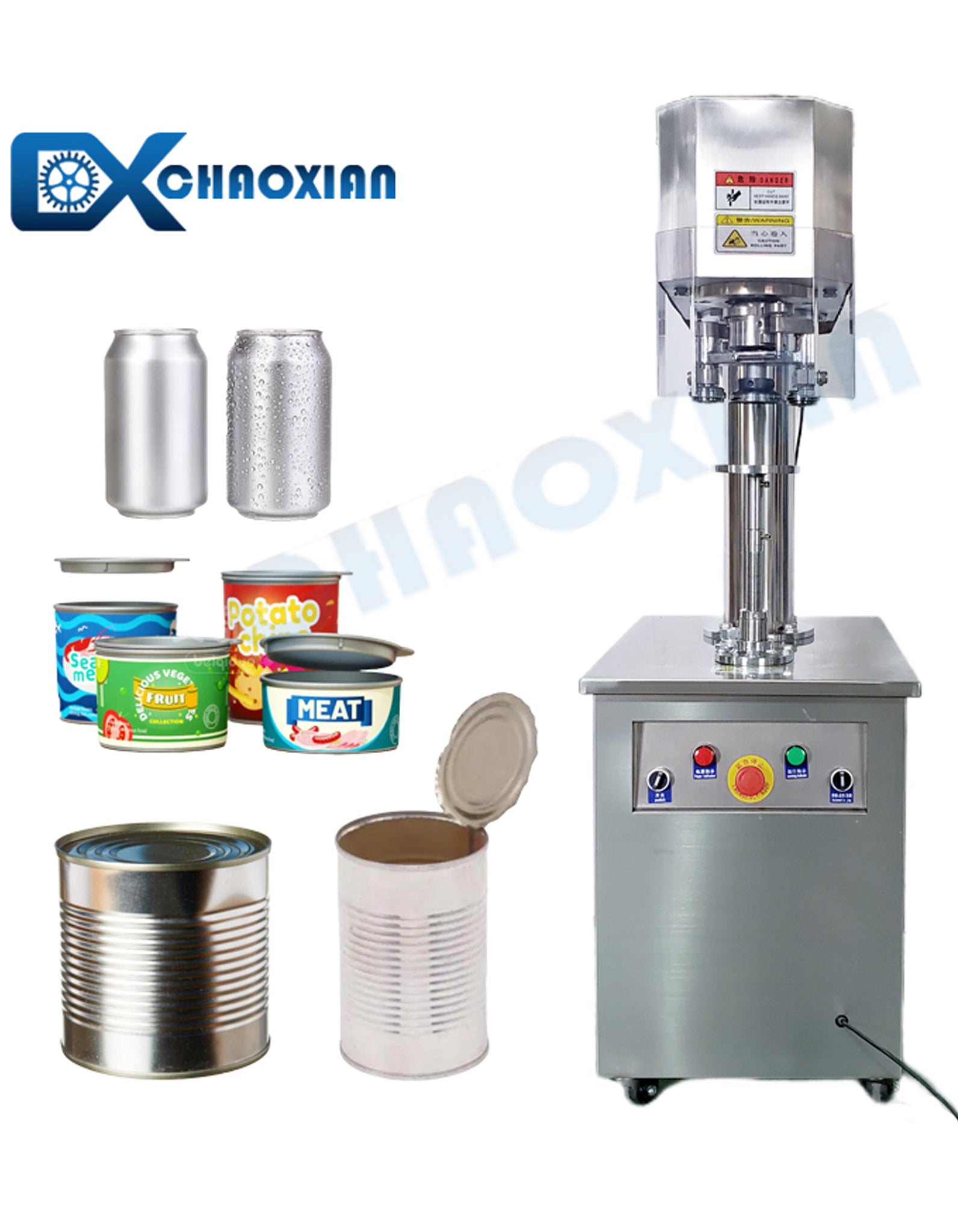

This semi-automatic can sealing machine is suitable for sealing:
* Tin cans for food or chemical products
* Plastic jars for snacks, nuts, and candies
* Paper cans for tea, coffee, or powder
* Aluminum foil bowls for ready-to-eat meals
Widely used in:
* Small food factories
* Tea packaging workshops
* Snack or dry goods producers
* Artisan product packaging and pilot production lines
Structure Description of CX Semi Automatic Can Sealing Machine
Specification of CX Semi Automatic Can Sealing Machine for Metal, Plastic & Paper Cans
|
Machine Model
|
CM-02
|
|
Machine Name
|
CX Semi Automatic Can Sealing Machine
for Metal, Plastic, and Paper Cans |
Snack & Tea Packaging
|
|
Sealing Speed
|
10-25 cans per minute
|
|
Can Diameter
|
45-126mm
|
|
Can Height
|
≤200mm(can be custom made)
|
|
Roller Knife Quantity
|
2/4 pcs
|
|
Roller Knife Material
|
High-strength alloy steel
|
|
Machine Material
|
Stainless steel 304
|
|
Machine Power
|
400w(2 roller knives model)
600w(4 roller knives model)
|
|
Power Supply
|
Single phase 220/110V
|
|
Machine Size
|
About 430*700*1340mm(L*W*H)
|
|
Packaging Size
|
About 550*800*1480(L*W*H)
|
|
Machine Weight
|
About 135kg
|

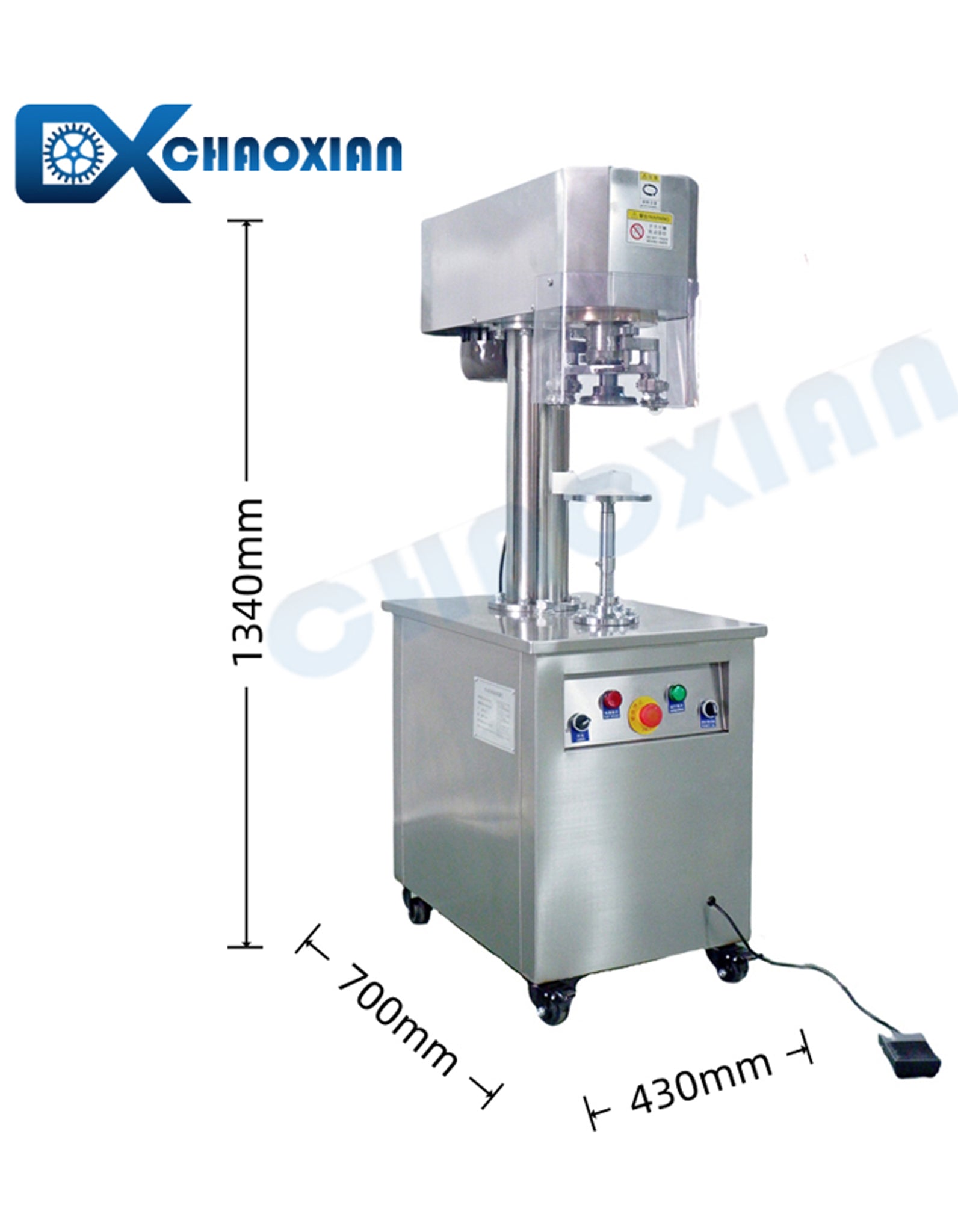

Size of CX Semi Automatic Can Sealing Machine for Metal, Plastic & Paper Cans
Details of CX Semi Automatic Can Sealing Machine for Metal, Plastic & Paper Cans

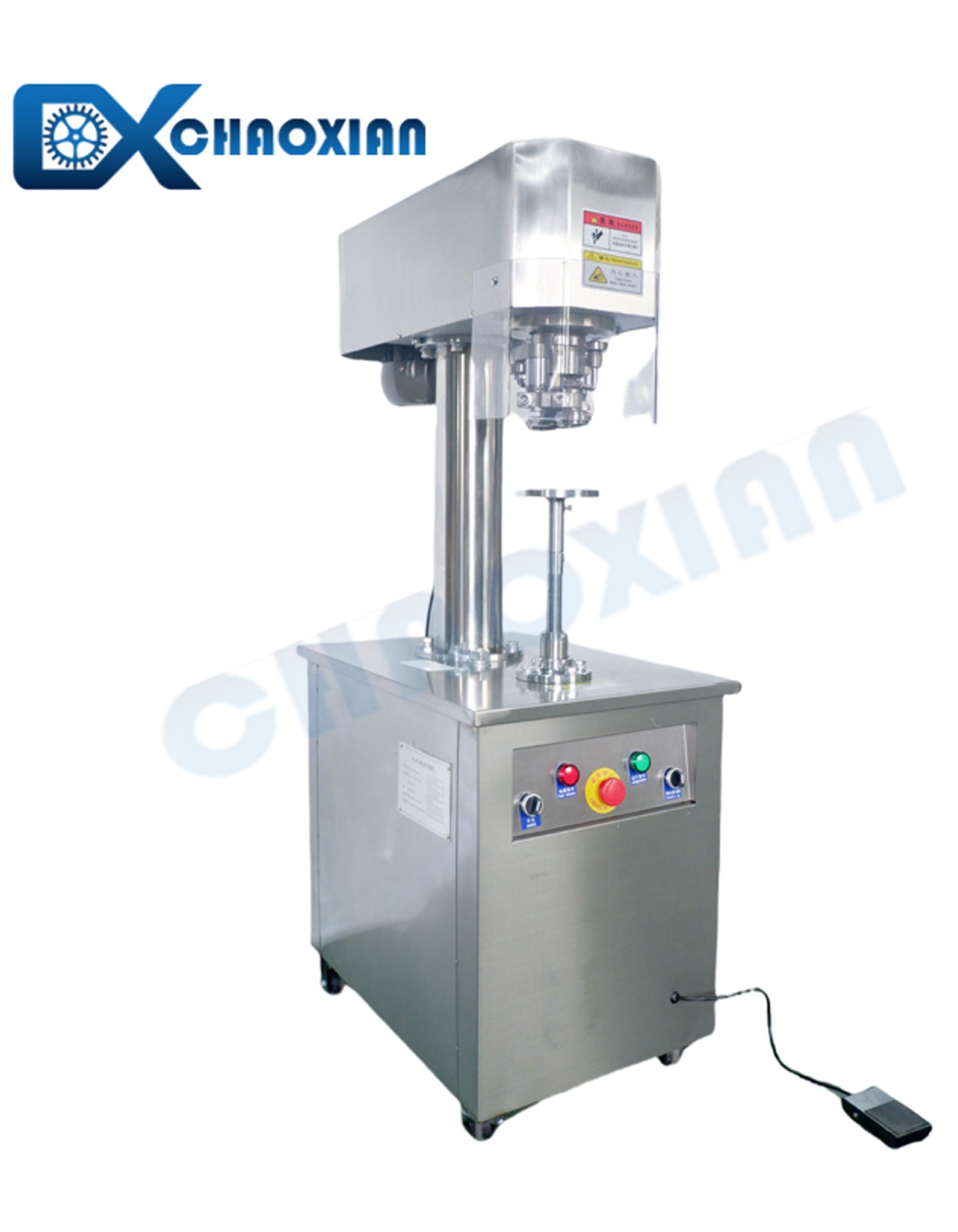

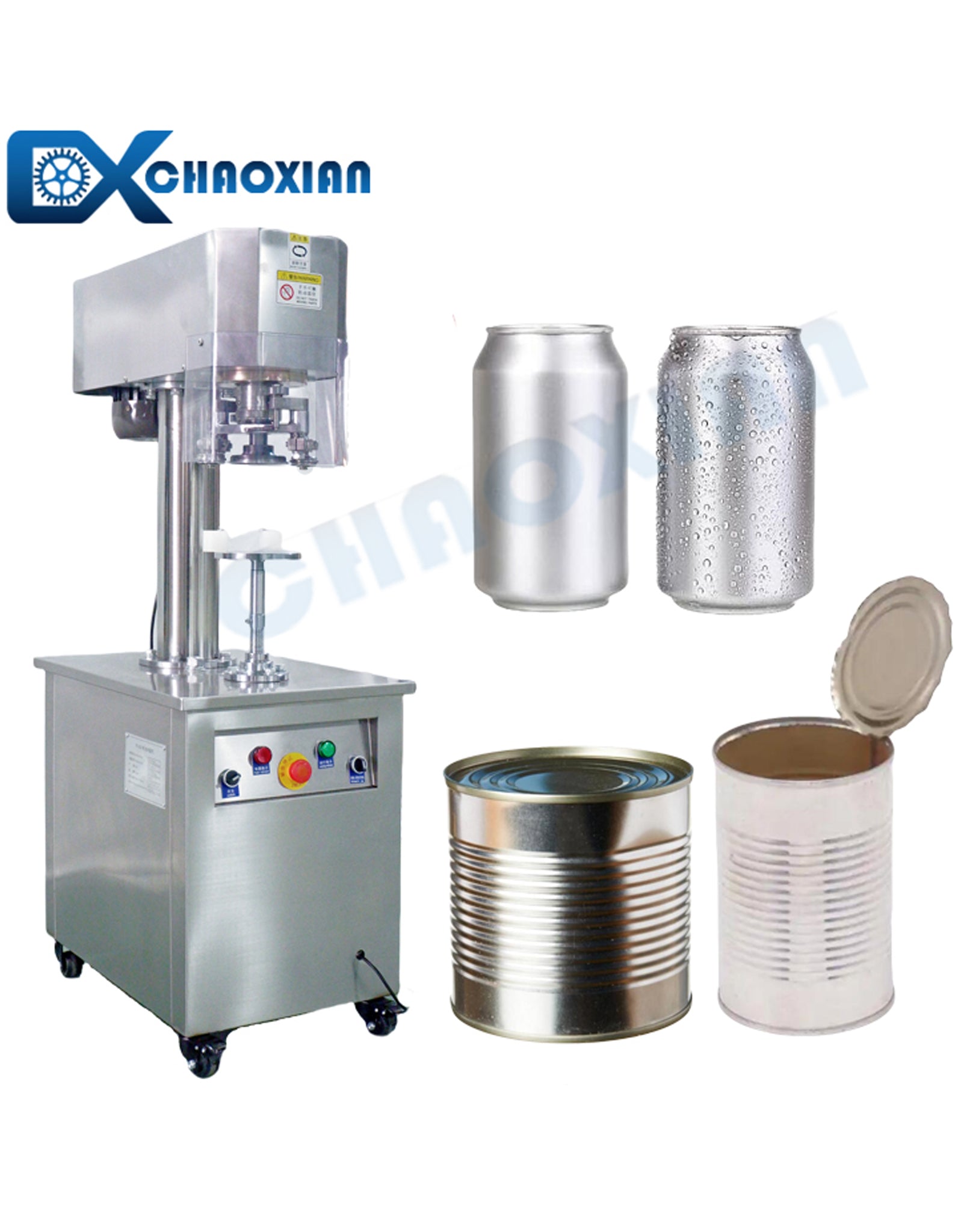

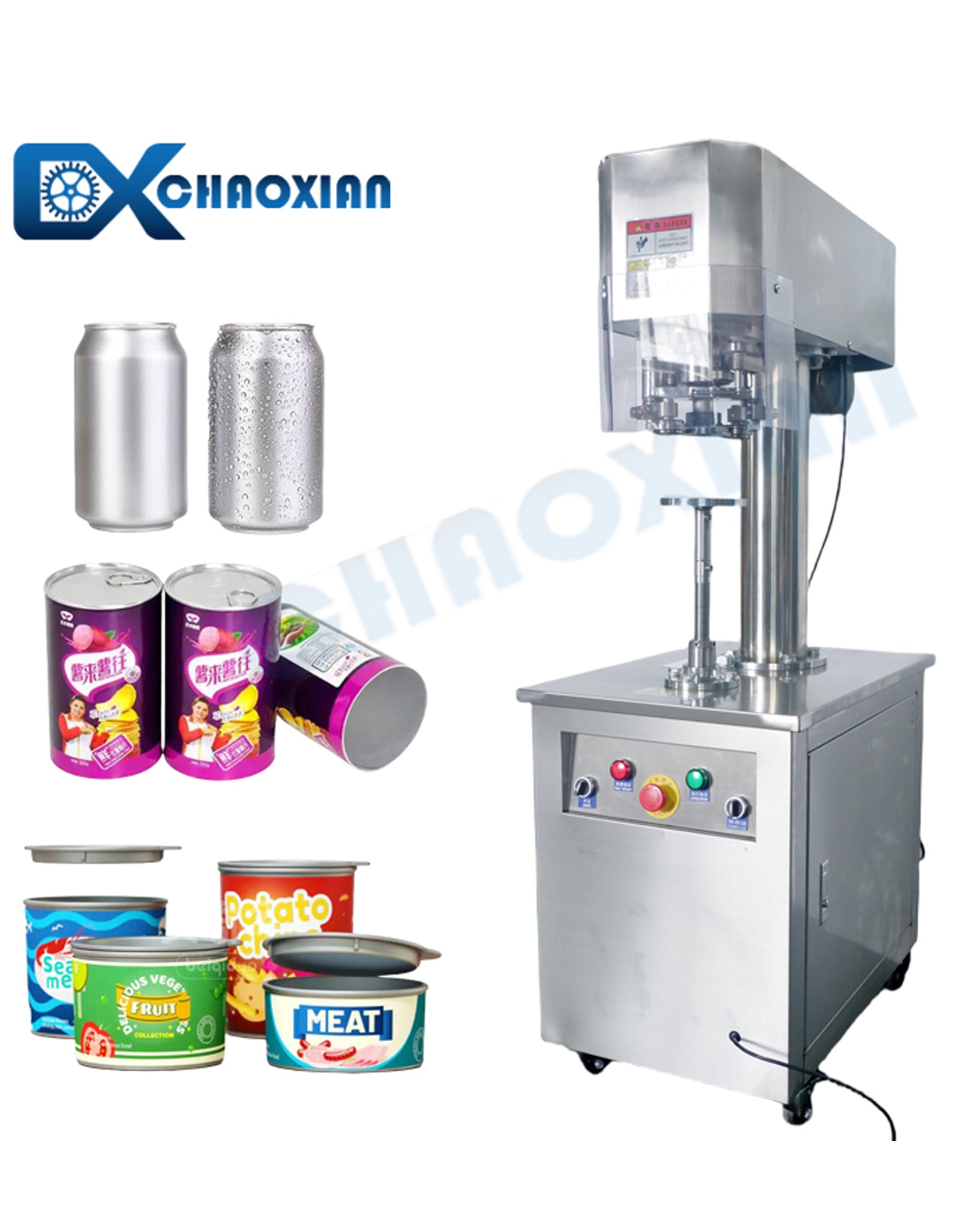

Real shots of CX Semi Automatic Can Sealing Machine for Metal, Plastic & Paper Cans
