Semi-Automatic Pneumatic Dip Tube & Hose Cutter for Perfume Sprayers and Cosmetic Pumps
Description:
This semi-automatic pneumatic pump tube cutting machine is specially engineered for trimming the dip tubes (also known as straws or stems) of various pump dispensers. Whether used for perfume atomizers, shampoo pumps, spray triggers, or lotion pumps, this machine offers a clean, precise, and safe cutting solution that ensures a perfect fit for your bottle packaging.
Unlike traditional electric cutters, this device operates entirely on air pressure—no electricity required—making it especially
suitable for flammable or sensitive products such as perfumes and alcohol-based formulations.
Main features:
1. Fully Pneumatic Operation:
Powered by compressed air, ensuring safe usage in environments where electrical sparks are a risk, such as perfume filling or alcohol-based product lines.
2. Safe and Simple to Use:
Insert the pump head into the guide hole at the top, press the mechanical switch, and the cutter is activated via pneumatic valve. The process is quick, ergonomic, and reduces operator fatigue.
3. High-Quality Cutter Blade:
Equipped with a diamond-shaped blade made from High-Speed Steel (HSS), a material commonly used in industrial cutting tools for its superior hardness, sharpness, and resistance to wear.
4. Semi-Automatic but Efficient:
Manual positioning and activation combined with pneumatic cutting delivers high repeatability and reliability without the need for complex electronics.
Application:
✔ Perfume Industry
* Fine mist sprayers
* Glass bottle atomizer pumps
* Luxury fragrance pumps (e.g., gold and silver finishes)
✔ Personal Care and Cosmetics
* Shampoo and conditioner pumps
* Lotion dispensers
* Face cleanser pumps
* Cream jar pump heads
✔ Household Cleaning Products
* Trigger spray nozzles for glass cleaner, disinfectants, degreasers
* Surface cleaner bottle pumps
* Foaming pump dispensers for hand soaps
✔ Sanitizers
* Alcohol-based hand sanitizer pumps
* Topical treatment dispensers
✔ OEM and Assembly Lines
* Contract manufacturers and bottle packers needing quick tube length adjustments
* Small-batch cosmetic producers and private labelers
* R&D labs and product prototyping teams

Structure Description of CX Semi-Automatic Pneumatic Dip Tube Cutter
Specification of CX Semi-Automatic Pneumatic Dip Tube Cutter
Machine Model
|
OPM-02
|
|||
Machine Name
|
CX Semi-Automatic Pneumatic Dip Tube
|
|||
Dirve Mode
|
Pneumatic
|
|||
Working Air Pressure
|
0.6-0.8Mpa
|
|||
Suitable Tube Diameter
|
≤10mm(Can be customized)
|
|||
Suitable Tube Length
|
≥50mm(Can be customized)
|
|||
Cutting knife
|
Diamond design industrial grade high speed steel
|
|||
Net Weight
|
About 8kg
|
|||
Gross Weight
|
About 13kg
|
|||
Machine Size
|
About 200*315*450mm(L*W*H)
|
|||
Package Size
|
About 350*250*600mm(L*W*H)
|
Design drawing of CX Semi-automatic Pneumatic Dip Tube Cutter

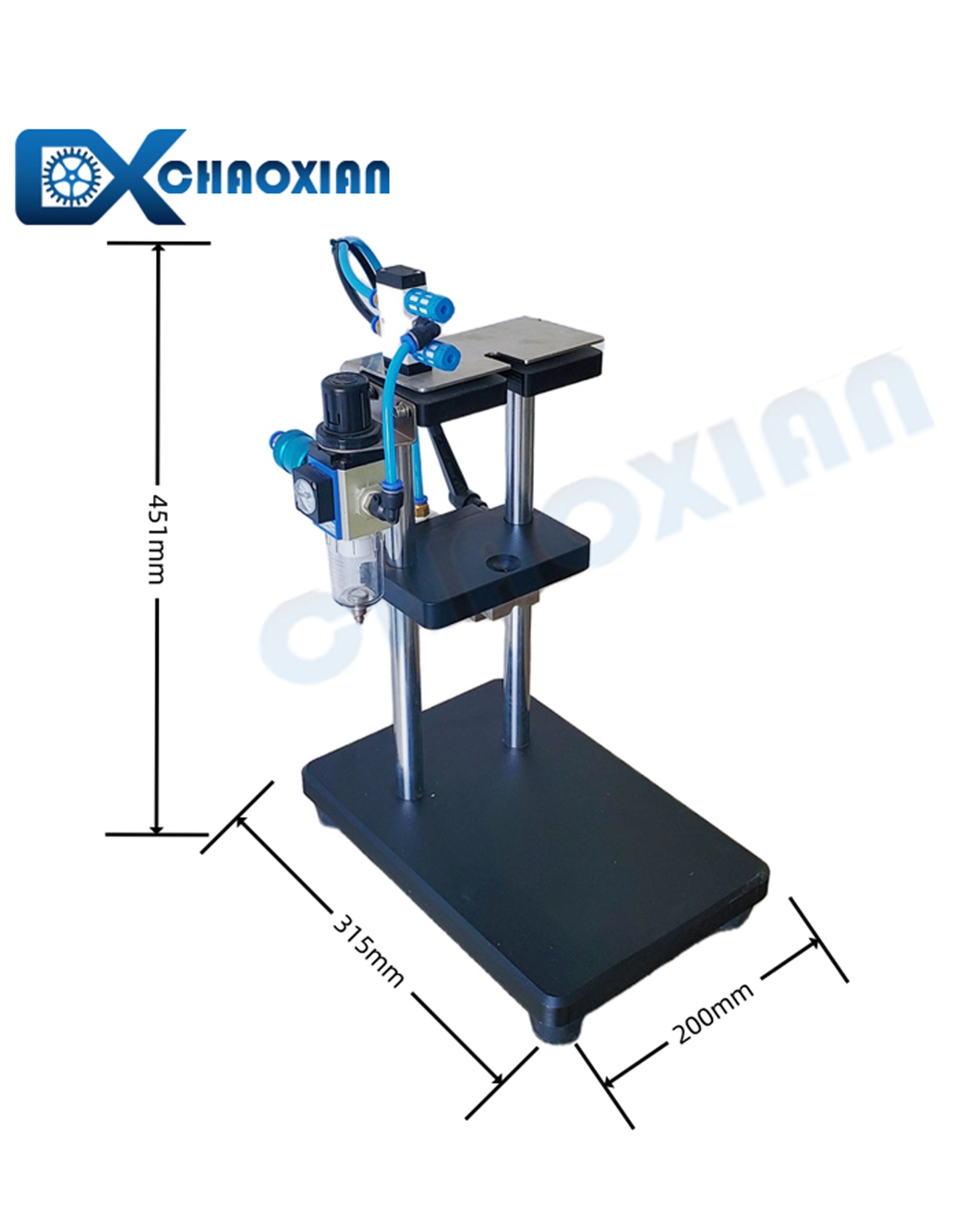

Size of CX Semi-automatic Pneumatic Dip Tube Cutter
Details of CX Semi-Automatic Pneumatic Dip Tube Cutter

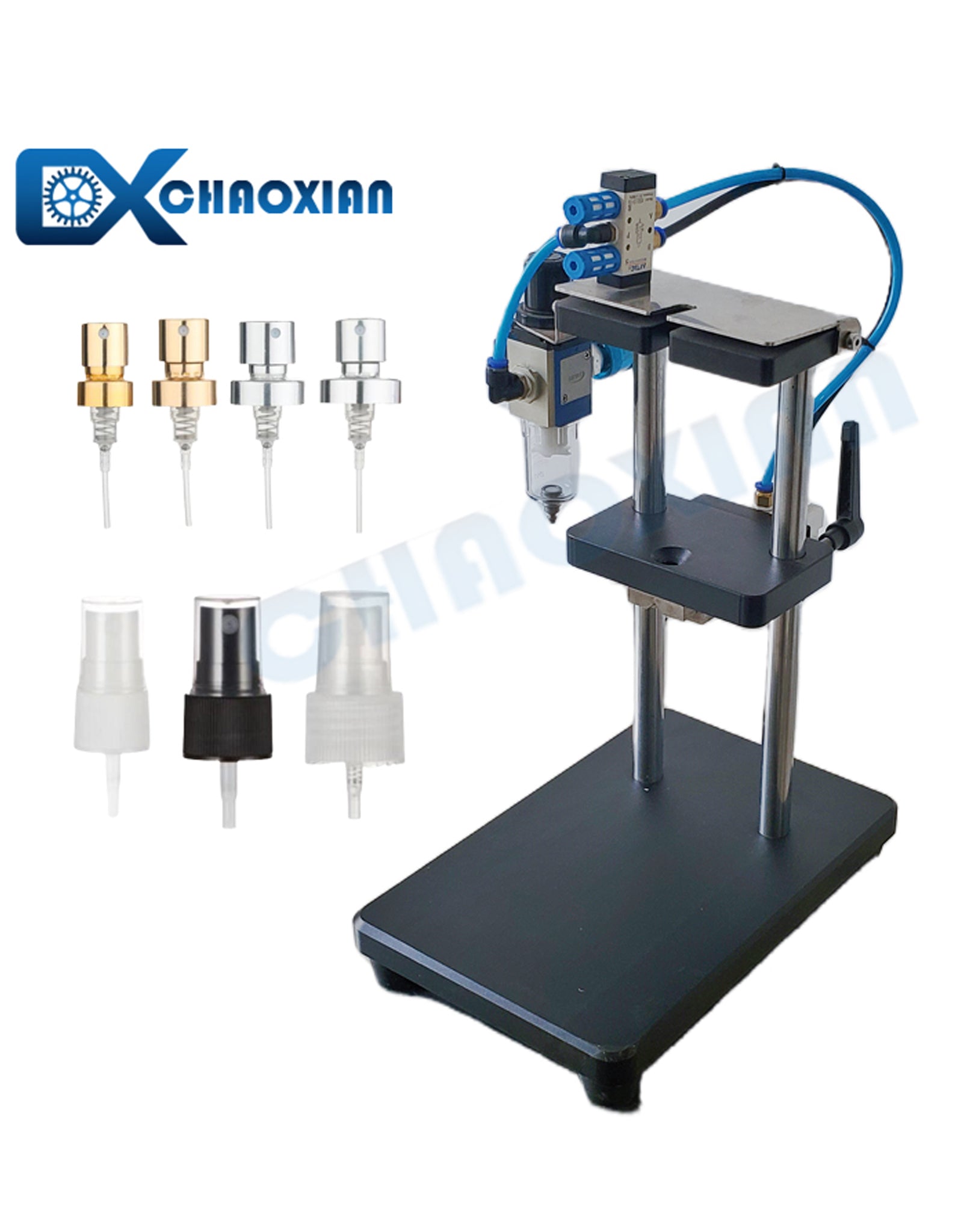

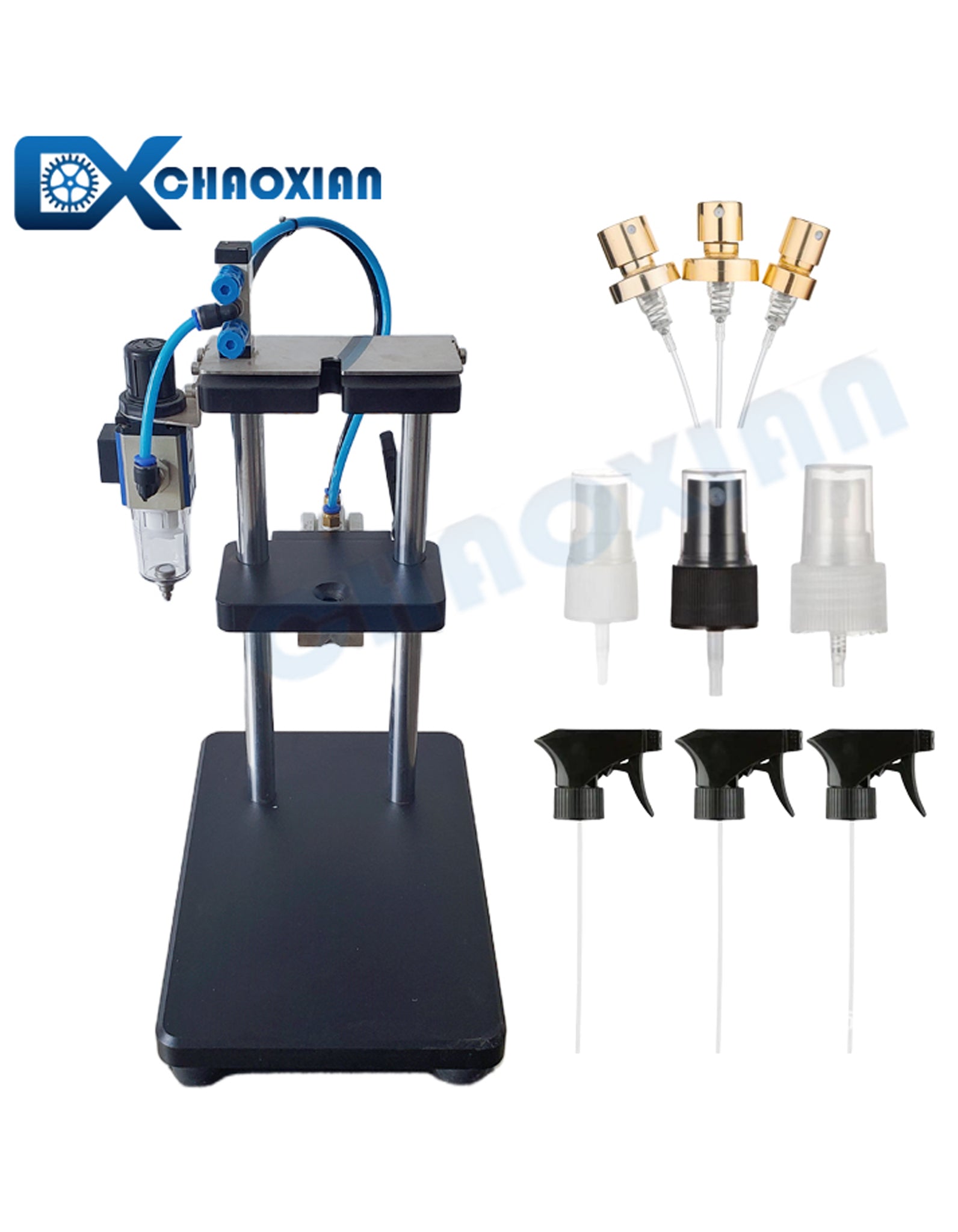

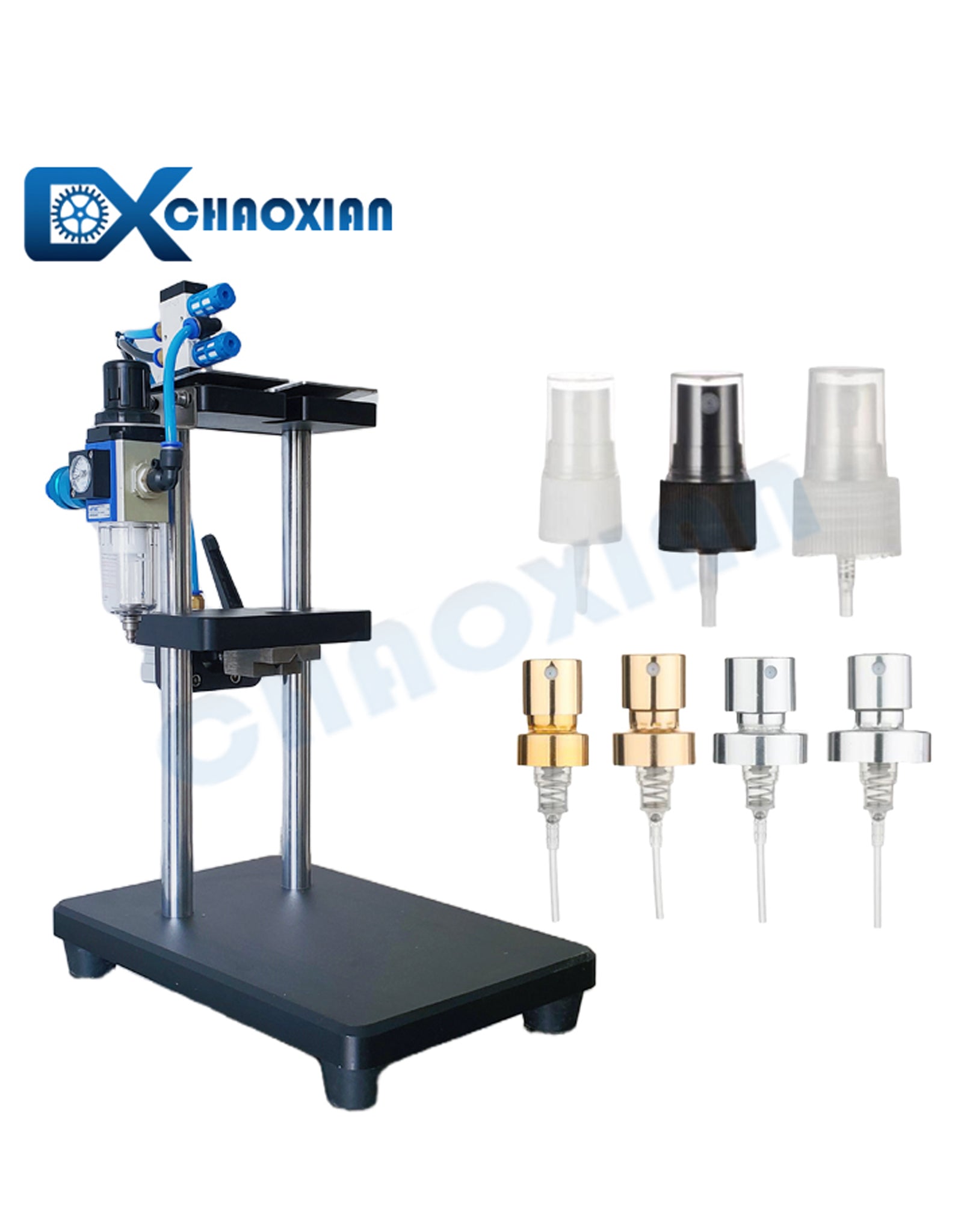

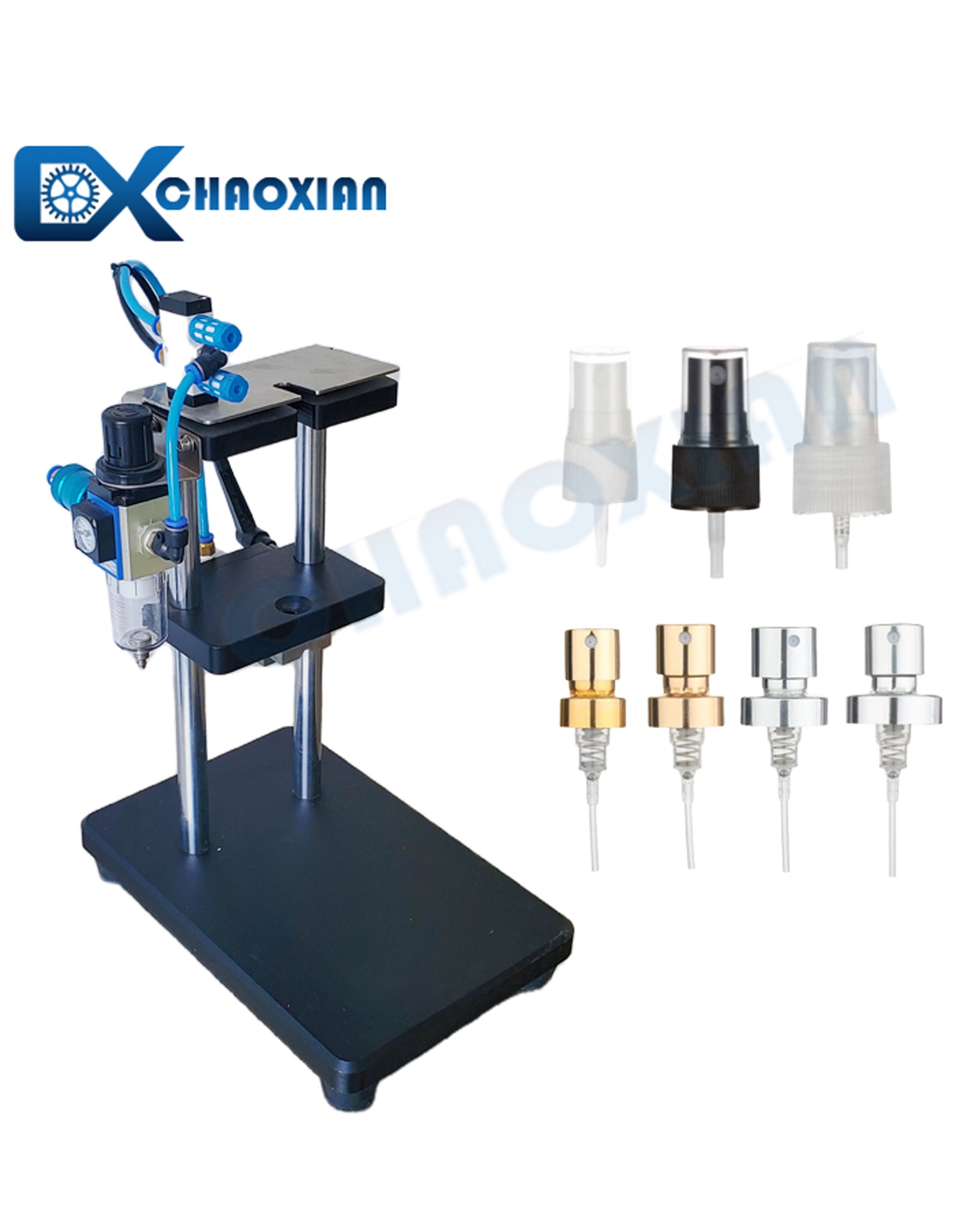

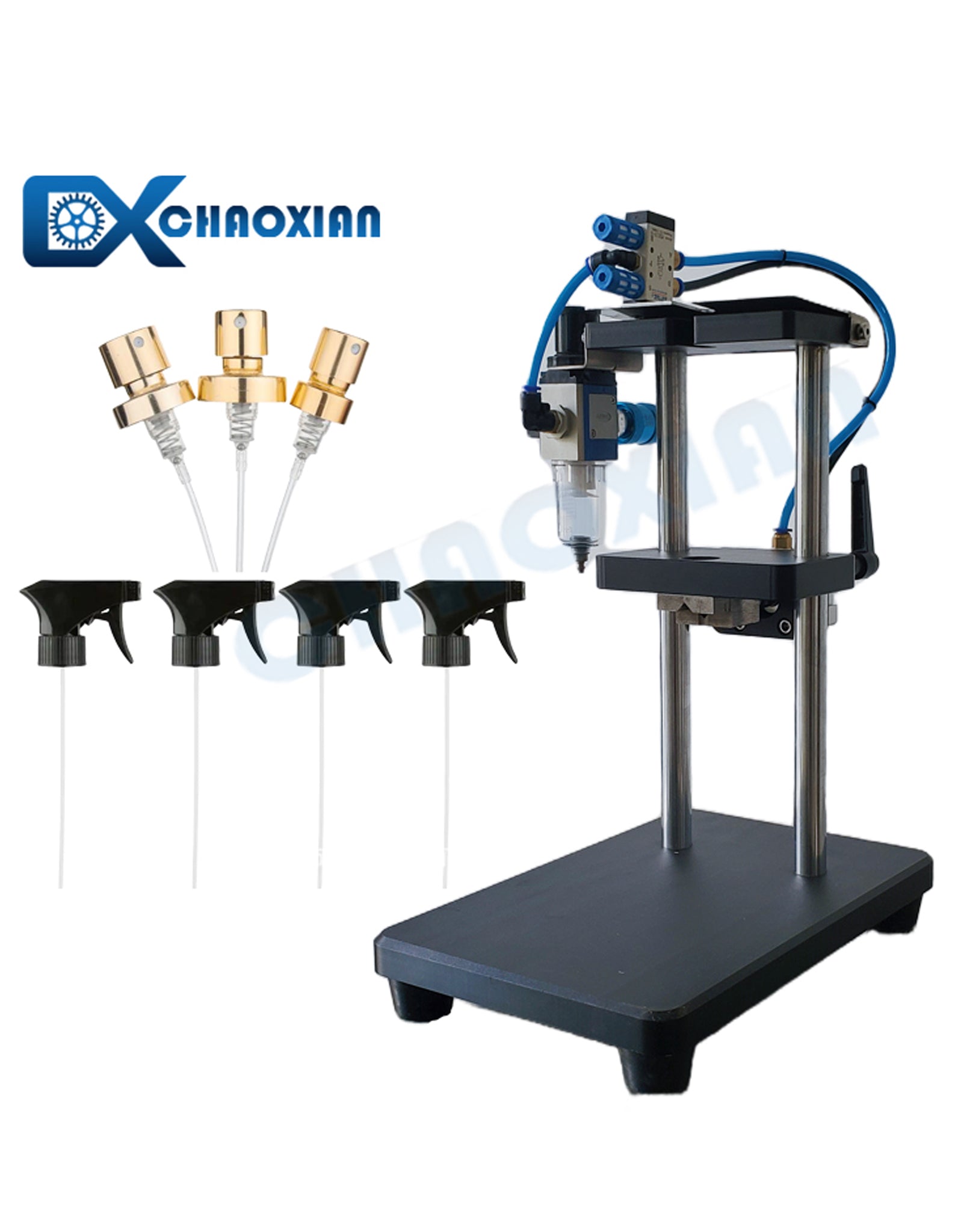

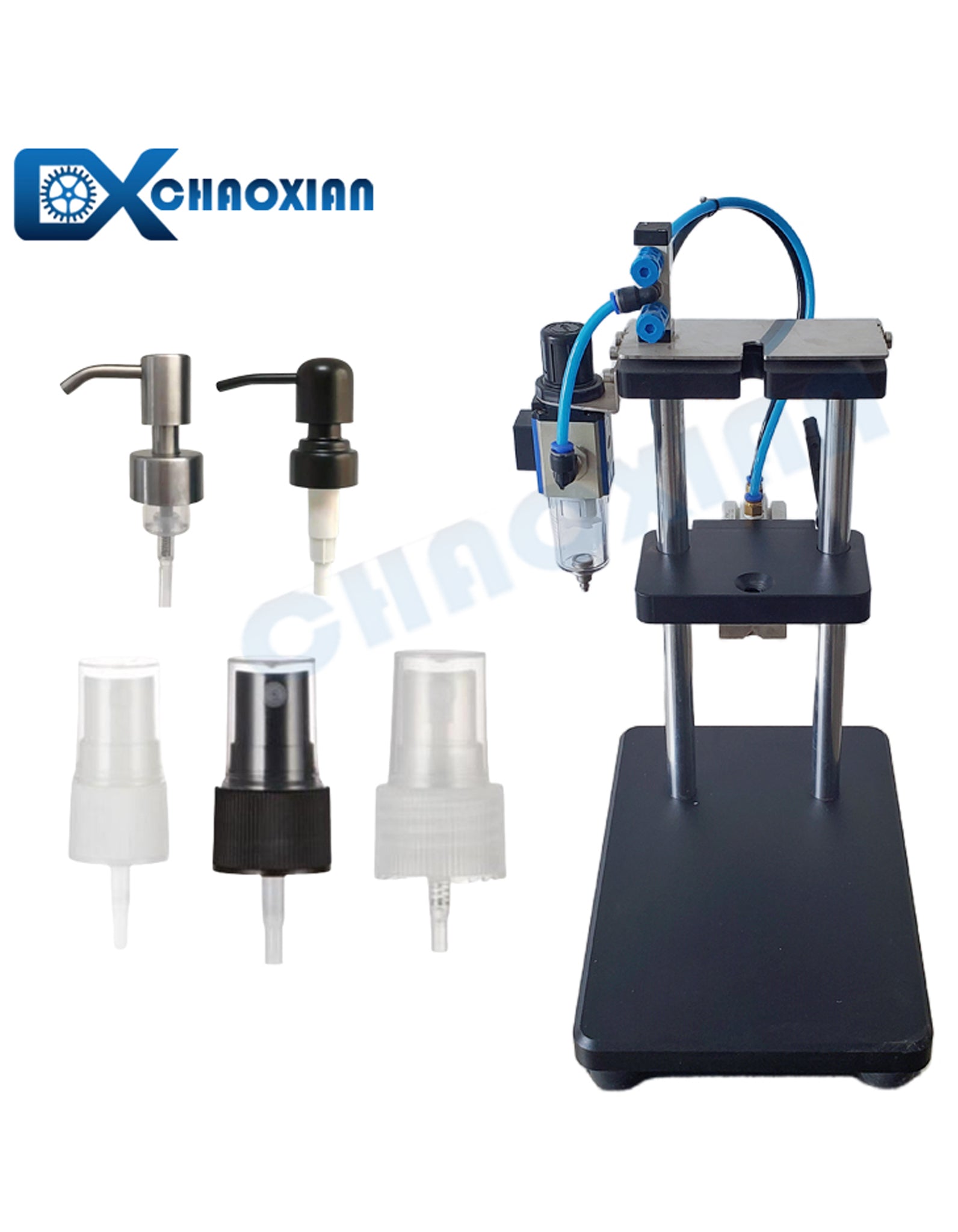

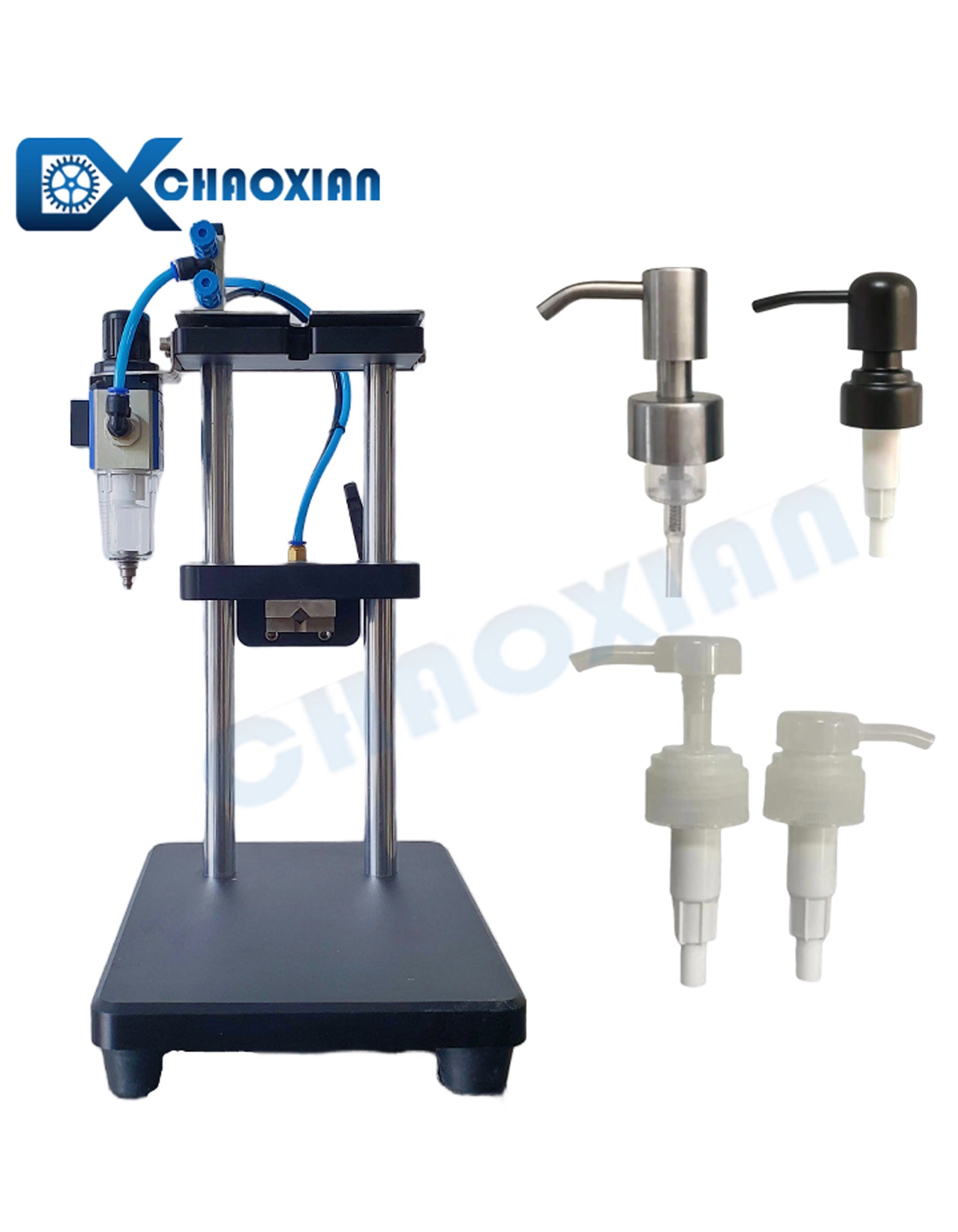

Real Shot of CX Semi-Automatic Pneumatic Dip Tube Cutter
